SKU: SNP1.1/2-RHP

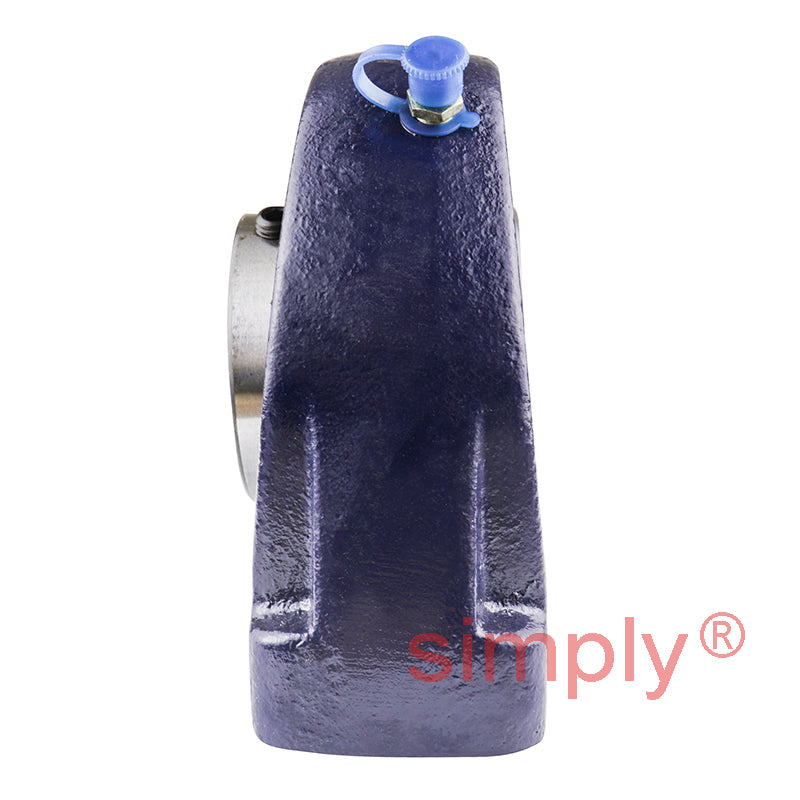

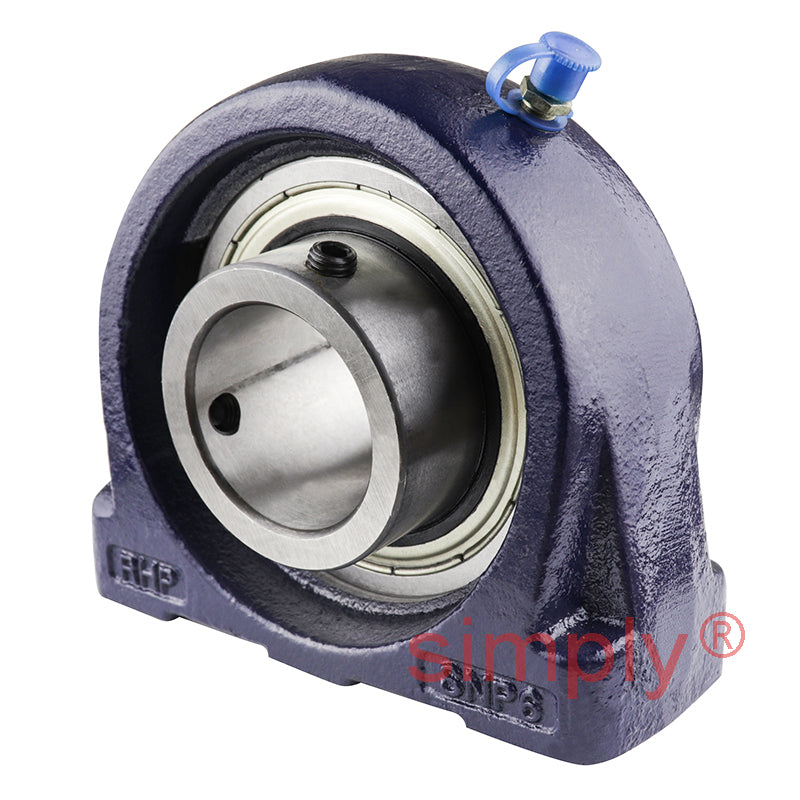

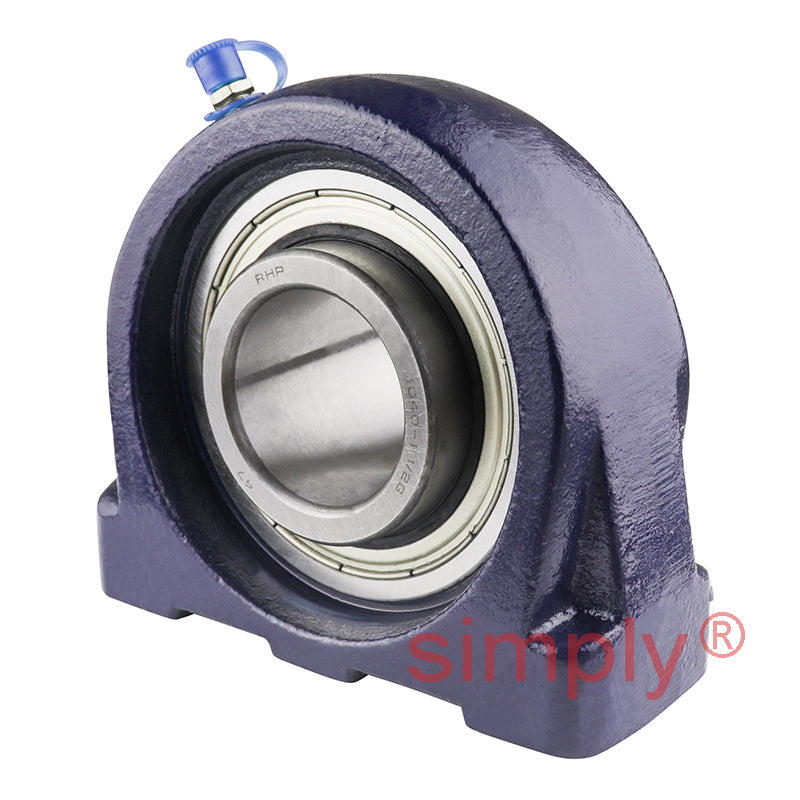

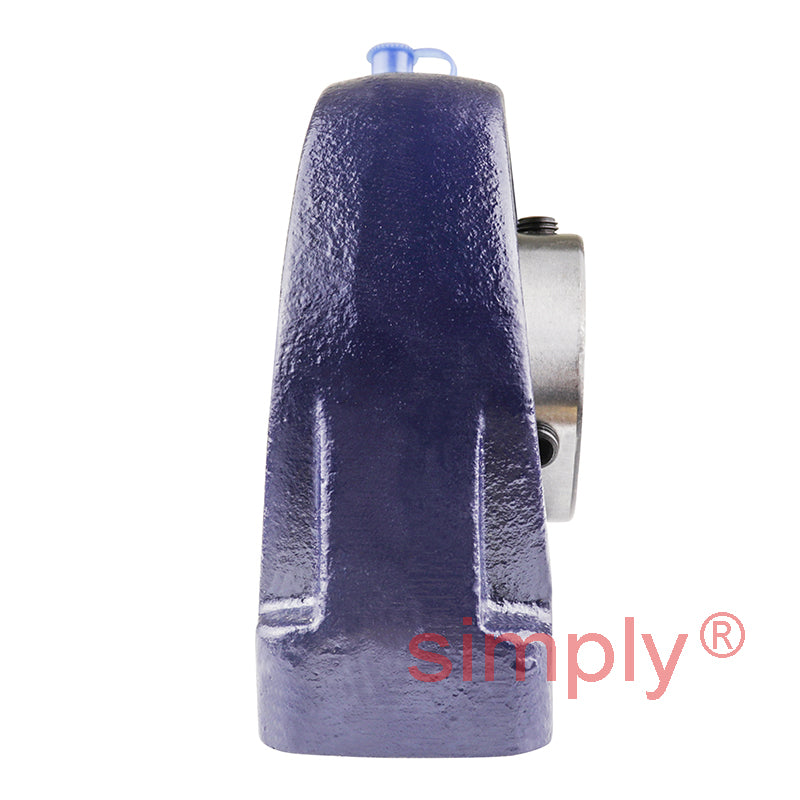

RHP SNP1-1/2 Threaded Base Small Footprint Pillow / Plummer Block and 1-1/2 inch Bore Grub Screw Full Width Insert

RHP SNP1-1/2 Threaded Base Small Footprint Pillow / Plummer Block and 1-1/2 inch Bore Grub Screw Full Width Insert
$101.23 ex VAT
$101.23 ex VAT
Sale Sold out

In stock

Price Break
10+ $67.81
20+ $64.00
30+ $63.24
40+ $62.48
50+ $61.71
75+ $60.95
100+ $57.14
200+ $56.38
250+ $55.62
500+ $54.86
1000+ $53.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
38.1mm = 1.5 (1-1/2) inch
Style:
SNP
Bolt Hole Centres:
88.9mm = 3.5 (3-1/2) inch
Technical
Bore 1-1/2 inch
L 4.646 inch
H 1.937 inch
H1 0.768 inch
H2 4.004 inch
J 3.5 inch
Threads 1/2-13 UNC
A 1.85 inch
A1 1.26 inch
B 1.938 inch
s 0.752 inch
d1 2.075 inch
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1040-1-1/2G+insonly">1040-1-1/2G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
