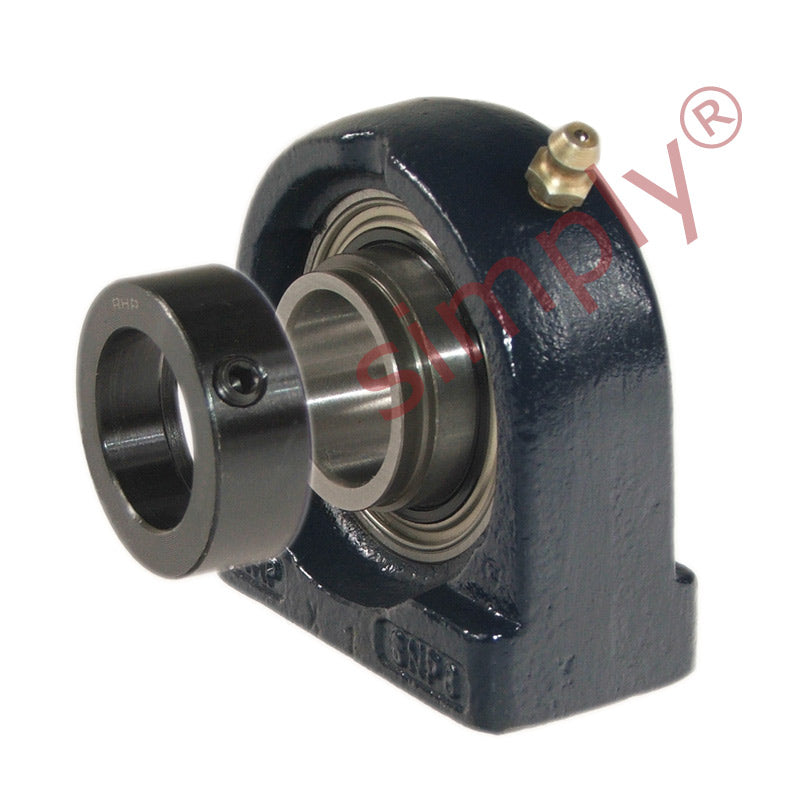

• RHP SNP1-1/4EC Threaded Base Small Footprint Pillow / Plummer Block and 1-1/4 inch Bore Flat Back Collar Insert
1 1

SKU: SNP1.1/4EC-RHP

RHP SNP1-1/4EC Threaded Base Small Footprint Pillow / Plummer Block and 1-1/4 inch Bore Flat Back Collar Insert

RHP SNP1-1/4EC Threaded Base Small Footprint Pillow / Plummer Block and 1-1/4 inch Bore Flat Back Collar Insert
$90.52 ex VAT
$90.52 ex VAT
Sale Sold out

In stock

Price Break
10+ $60.64
20+ $57.23
30+ $56.55
40+ $55.87
50+ $55.19
75+ $54.51
100+ $51.10
200+ $50.42
250+ $49.74
500+ $49.06
1000+ $47.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
SNP
Bolt Hole Centres:
82.6mm = 3.252 inch
Technical
Bore 1-1/4 inch
L 4.331 inch
H 1.874 inch
H1 0.768 inch
H2 3.764 inch
J 3.252 inch
Threads 1/2-13 UNC
A 1.772 inch
A1 1.181 inch
B2 1.531 inch
s1 0.376 inch
d2 2.188 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 2.4 kg
Insert <a href="advanced_search_result.php?keywords=1235-1-1/4ECG+insonly">1235-1-1/4ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
