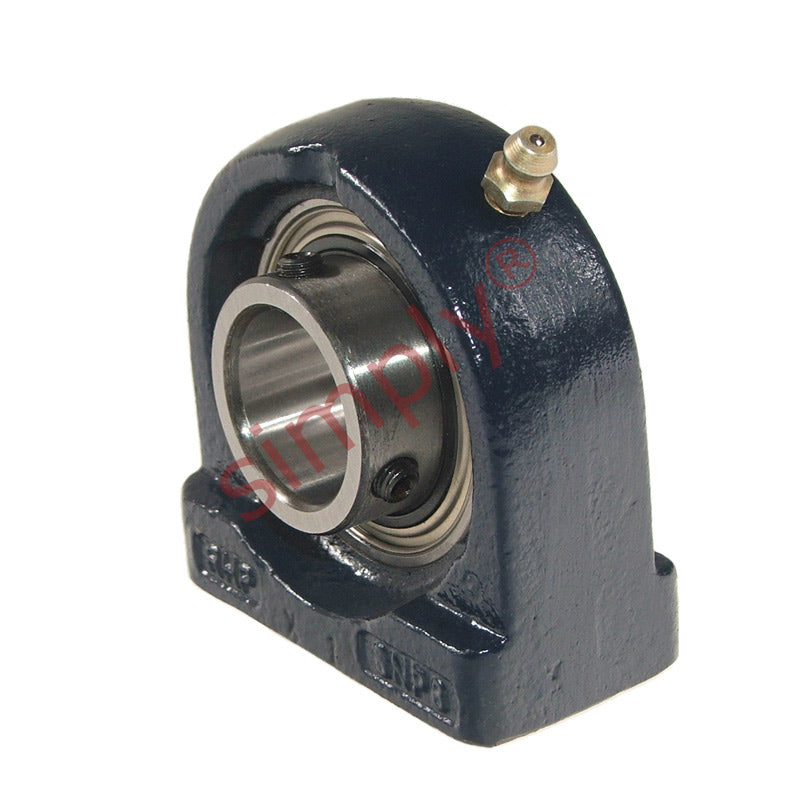

• RHP SNP1-1/8 Threaded Base Small Footprint Pillow / Plummer Block and 1-1/8 inch Bore Grub Screw Full Width Insert
1 1

SKU: SNP1.1/8-RHP

RHP SNP1-1/8 Threaded Base Small Footprint Pillow / Plummer Block and 1-1/8 inch Bore Grub Screw Full Width Insert

RHP SNP1-1/8 Threaded Base Small Footprint Pillow / Plummer Block and 1-1/8 inch Bore Grub Screw Full Width Insert
$75.44 ex VAT
$75.44 ex VAT
Sale Sold out

In stock

Price Break
10+ $50.53
20+ $47.69
30+ $47.12
40+ $46.56
50+ $45.99
75+ $45.42
100+ $42.58
200+ $42.01
250+ $41.45
500+ $40.88
1000+ $39.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
28.58mm = 1.125 (1-1/8) inch
Style:
SNP
Bolt Hole Centres:
76.2mm = 3 inch
Technical
Bore 1-1/8 inch
L 3.78 inch
H 1.689 inch
H1 0.65 inch
H2 3.303 inch
J 3 inch
Threads 7/16-14 UNC
A 1.575 inch
A1 1.122 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.8 kg
Insert <a href="advanced_search_result.php?keywords=1030-1-1/8G+insonly">1030-1-1/8G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
