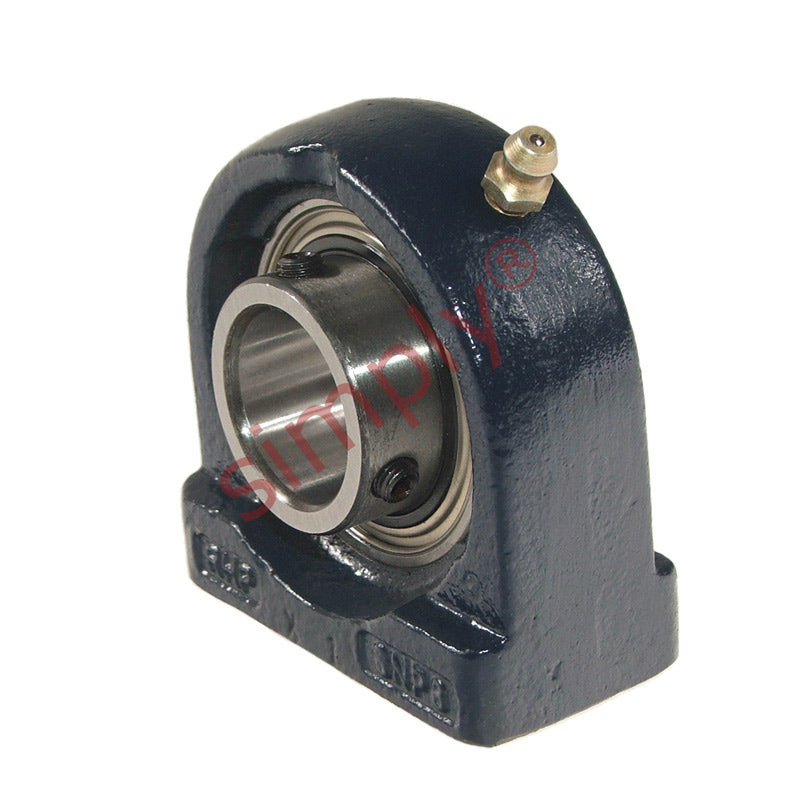

• RHP SNP1-11/16 Threaded Base Small Footprint Pillow / Plummer Block and 1-11/16 inch Bore Grub Screw Full Width Insert
1 1

SKU: SNP1.11/16-RHP

RHP SNP1-11/16 Threaded Base Small Footprint Pillow / Plummer Block and 1-11/16 inch Bore Grub Screw Full Width Insert

RHP SNP1-11/16 Threaded Base Small Footprint Pillow / Plummer Block and 1-11/16 inch Bore Grub Screw Full Width Insert
$113.68 ex VAT
$113.68 ex VAT
Sale Sold out

In stock

Price Break
10+ $76.15
20+ $71.87
30+ $71.02
40+ $70.16
50+ $69.31
75+ $68.45
100+ $64.17
200+ $63.32
250+ $62.46
500+ $61.61
1000+ $59.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
42.86mm = 1.687 (1-11/16) inch
Style:
SNP
Bolt Hole Centres:
95.3mm = 3.752 inch
Technical
Bore 1-11/16 inch
L 5 inch
H 2.126 inch
H1 0.768 inch
H2 4.331 inch
J 3.752 inch
Threads 1/2-13 UNC
A 1.89 inch
A1 1.299 inch
B 1.938 inch
s 0.752 inch
d1 2.256 inch
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 3.5 kg
Insert <a href="advanced_search_result.php?keywords=1045-1-11/16G+insonly">1045-1-11/16G Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
