• RHP SNP1-7/16 Threaded Base Small Footprint Pillow / Plummer Block and 1-7/16 inch Bore Grub Screw Full Width Insert
1 1

SKU: SNP1.7/16-RHP

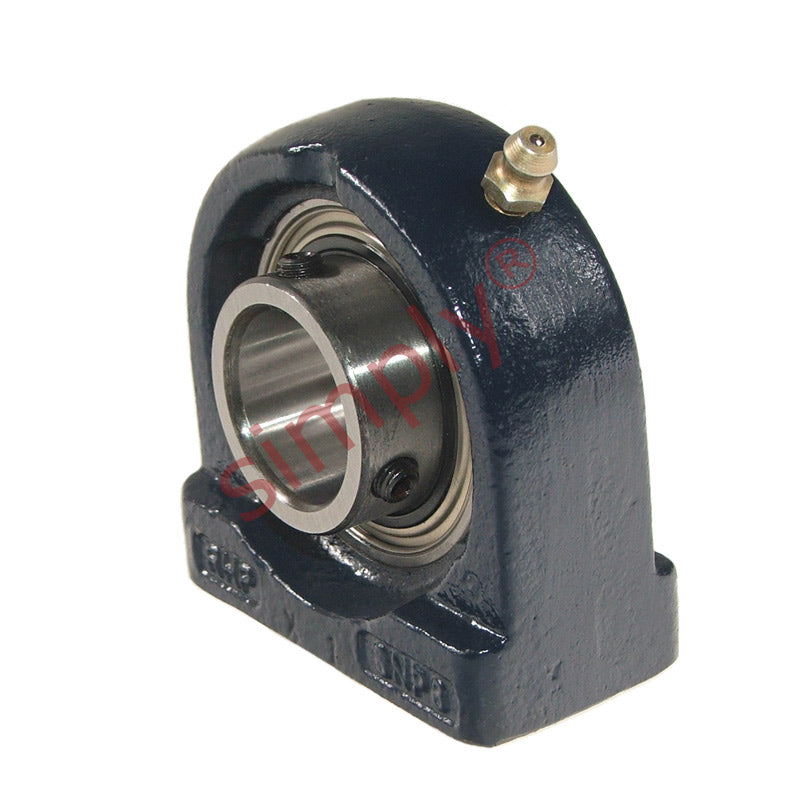

RHP SNP1-7/16 Threaded Base Small Footprint Pillow / Plummer Block and 1-7/16 inch Bore Grub Screw Full Width Insert

RHP SNP1-7/16 Threaded Base Small Footprint Pillow / Plummer Block and 1-7/16 inch Bore Grub Screw Full Width Insert
$86.66 ex VAT
$86.66 ex VAT
Sale Sold out

In stock

Price Break
10+ $58.04
20+ $54.78
30+ $54.13
40+ $53.48
50+ $52.83
75+ $52.18
100+ $48.91
200+ $48.26
250+ $47.61
500+ $46.96
1000+ $45.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
36.51mm = 1.437 (1-7/16) inch
Style:
SNP
Bolt Hole Centres:
82.6mm = 3.252 inch
Technical
Bore 1-7/16 inch
L 4.331 inch
H 1.874 inch
H1 0.768 inch
H2 3.764 inch
J 3.252 inch
Threads 1/2-13 UNC
A 1.772 inch
A1 1.181 inch
B 1.688 inch
s 0.69 inch
d1 1.838 inch
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 2.4 kg
Insert <a href="advanced_search_result.php?keywords=1035-1-7/16G+insonly">1035-1-7/16G Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
