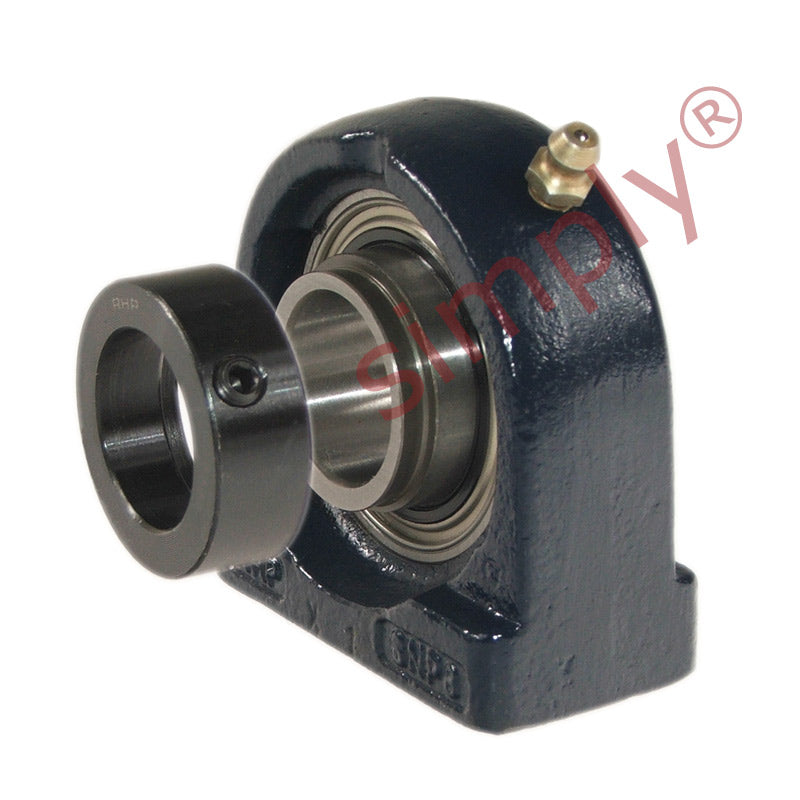

• RHP SNP1EC Threaded Base Small Footprint Pillow / Plummer Block and 1 inch Bore Flat Back Collar Insert
1 1

SKU: SNP1EC-RHP

RHP SNP1EC Threaded Base Small Footprint Pillow / Plummer Block and 1 inch Bore Flat Back Collar Insert

RHP SNP1EC Threaded Base Small Footprint Pillow / Plummer Block and 1 inch Bore Flat Back Collar Insert
$65.08 ex VAT
$65.08 ex VAT
Sale Sold out

In stock

Price Break
10+ $43.59
20+ $41.14
30+ $40.65
40+ $40.16
50+ $39.67
75+ $39.18
100+ $36.73
200+ $36.24
250+ $35.75
500+ $35.26
1000+ $34.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25.4mm = 1 inch
Style:
SNP
Bolt Hole Centres:
50.8mm = 2 inch
Technical
Bore 1 inch
L 3.15 inch
H 1.437 inch
H1 0.531 inch
H2 2.815 inch
J 2 inch
Threads 3/8-16 UNC
A 1.417 inch
A1 0.984 inch
B2 1.217 inch
s1 0.298 inch
d2 1.5 inch
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 1.2 kg
Insert <a href="advanced_search_result.php?keywords=1225-1ECG+insonly">1225-1ECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
