• RHP SNP2 Threaded Base Small Footprint Pillow / Plummer Block and 2 inch Bore Grub Screw Full Width Insert
1 1

SKU: SNP2-RHP

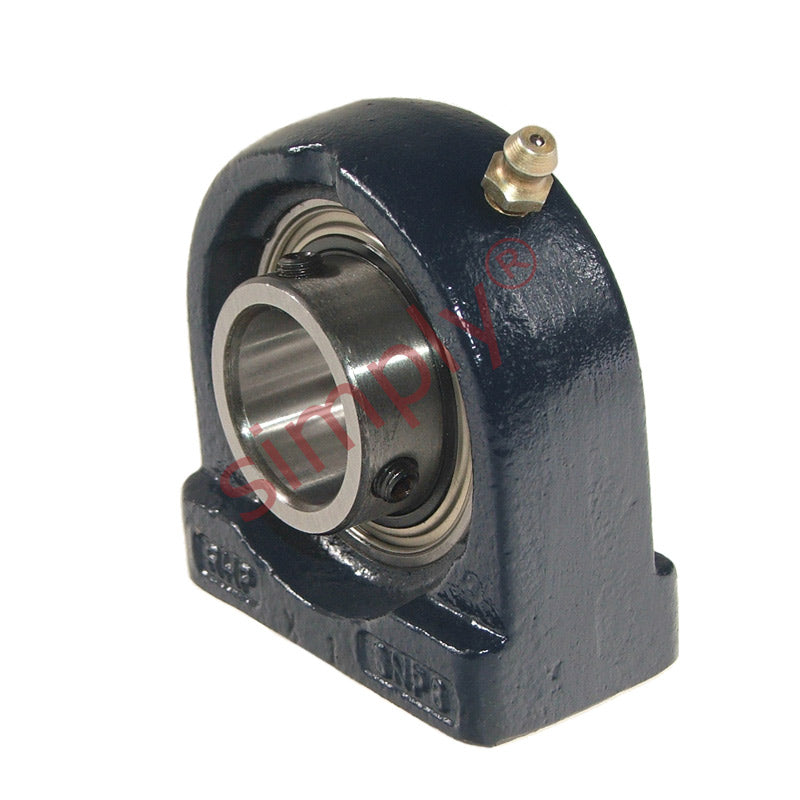

RHP SNP2 Threaded Base Small Footprint Pillow / Plummer Block and 2 inch Bore Grub Screw Full Width Insert

RHP SNP2 Threaded Base Small Footprint Pillow / Plummer Block and 2 inch Bore Grub Screw Full Width Insert
$158.74 ex VAT
$158.74 ex VAT
Sale Sold out

In stock

Price Break
10+ $106.33
20+ $100.36
30+ $99.16
40+ $97.97
50+ $96.77
75+ $95.58
100+ $89.61
200+ $88.41
250+ $87.22
500+ $86.02
1000+ $83.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50.8mm = 2 inch
Style:
SNP
Bolt Hole Centres:
118.01mm = 4.646 inch
Technical
Bore 2 inch
L 6.063 inch
H 2.5 inch
H1 1.043 inch
H2 5.118 inch
J 4.646 inch
Threads 5/8-11 UNC
A 2.362 inch
A1 1.639 inch
B 2.187 inch
s 0.877 inch
d1 2.709 inch
Dynamic load Cr 43500 N
Static load Cor 29200 N
Rec max speed 3100 rpm
Weight 4 kg
Insert <a href="advanced_search_result.php?keywords=1055-2G+insonly">1055-2G Click Here</a>
Casting group 9
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
