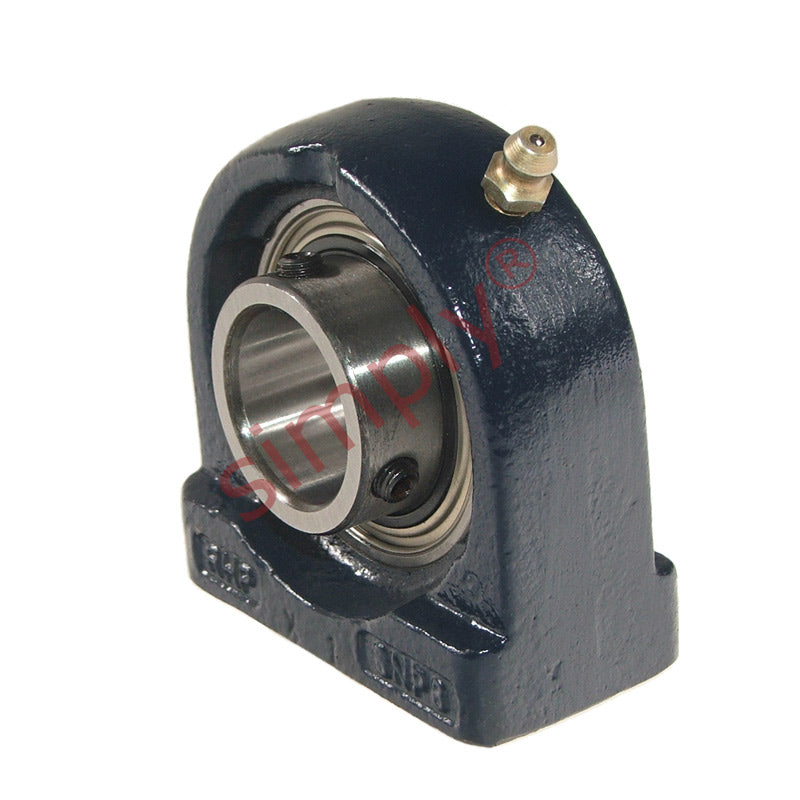

• RHP SNP20A Threaded Base Small Footprint Pillow / Plummer Block and 20mm Bore Grub Screw Flat Back Insert
1 1

SKU: SNP20A-RHP

RHP SNP20A Threaded Base Small Footprint Pillow / Plummer Block and 20mm Bore Grub Screw Flat Back Insert

RHP SNP20A Threaded Base Small Footprint Pillow / Plummer Block and 20mm Bore Grub Screw Flat Back Insert
$50.36 ex VAT
$50.36 ex VAT
Sale Sold out

In stock

Price Break
10+ $33.73
20+ $31.83
30+ $31.45
40+ $31.07
50+ $30.70
75+ $30.32
100+ $28.42
200+ $28.04
250+ $27.66
500+ $27.28
1000+ $26.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
20mm
Style:
SNP
Bolt Hole Centres:
50.8mm
Technical
Bore 20mm
L 65mm
H 33.3mm
H1 13.5mm
H2 65.8mm
J 50.8mm
Threads M8x1.25
A 32mm
A1 22.5mm
B1 25.77mm
s1 7.56mm
d1 28.5mm
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1220-20AG+insonly">1220-20AG Click Here</a>
Casting group 2
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
