SKU: SNP25-RHP

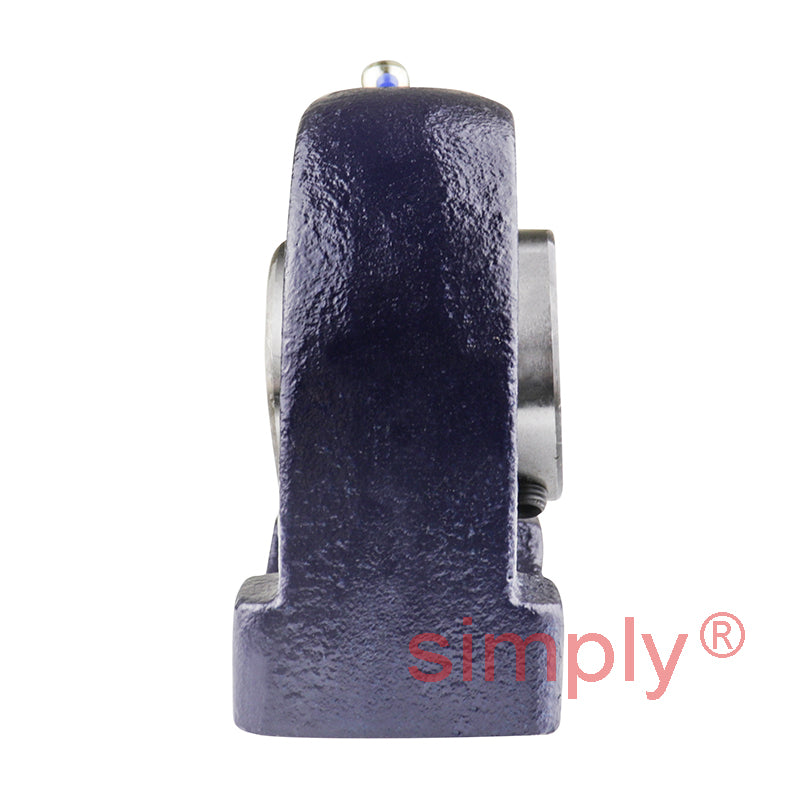

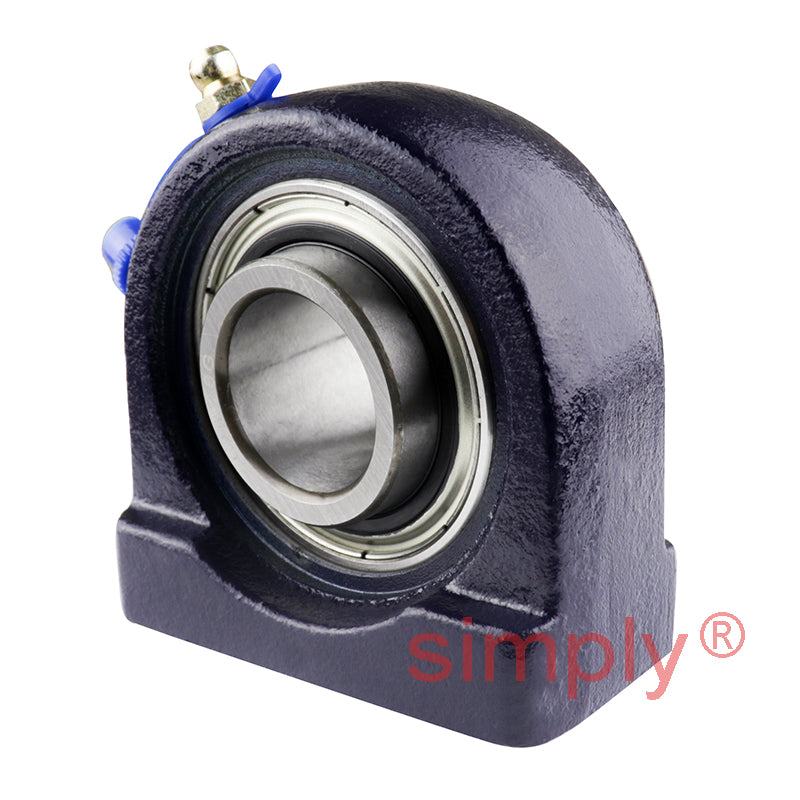

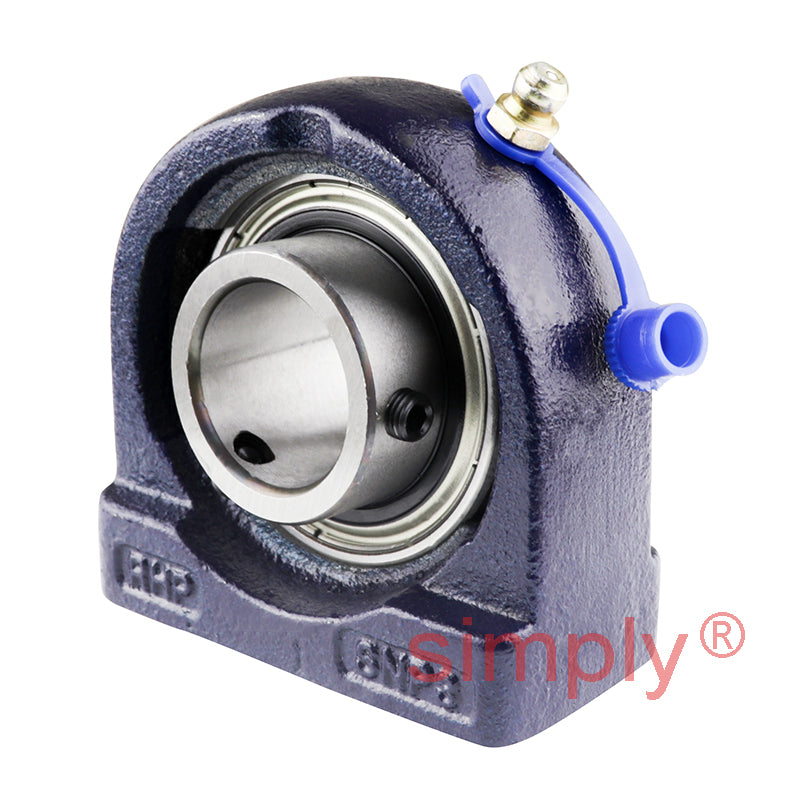

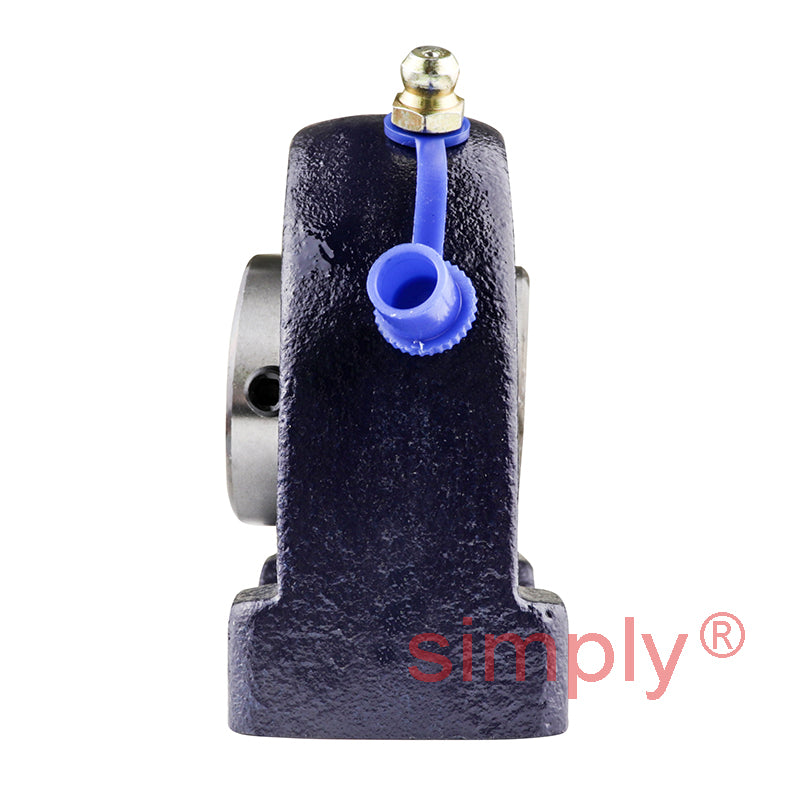

RHP SNP25 Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Grub Screw Full Width Insert

RHP SNP25 Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Grub Screw Full Width Insert
$59.95 ex VAT
$59.95 ex VAT
Sale Sold out

In stock

Price Break
10+ $40.16
20+ $37.90
30+ $37.45
40+ $37.00
50+ $36.55
75+ $36.09
100+ $33.84
200+ $33.39
250+ $32.94
500+ $32.49
1000+ $31.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

RHP SNP Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint

Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
SNP
Bolt Hole Centres:
50.8mm
Technical
Bore 25mm
L 80mm
H 36.5mm
H1 13.5mm
H2 71.5mm
J 50.8mm
Threads M10x1.50
A 36mm
A1 25mm
B 34.11mm
s 14.32mm
d1 34.01mm
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 1.2 kg
Insert <a href="advanced_search_result.php?keywords=1025-25G+insonly">1025-25G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
