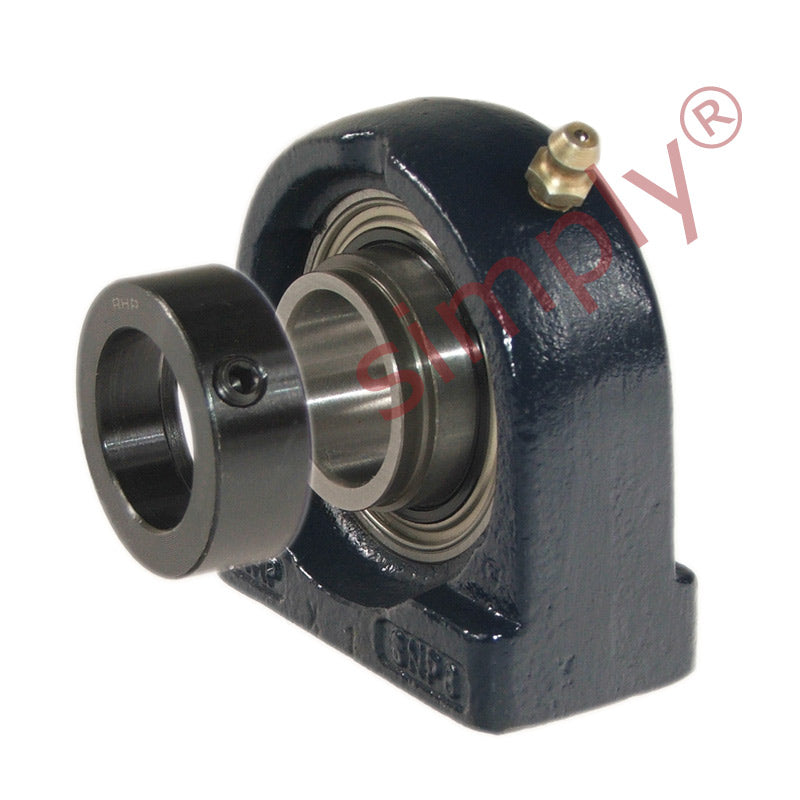

• RHP SNP25DEC Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Full Width Collar Insert
1 1

SKU: SNP25DEC-RHP

RHP SNP25DEC Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Full Width Collar Insert

RHP SNP25DEC Threaded Base Small Footprint Pillow / Plummer Block and 25mm Bore Full Width Collar Insert
$67.59 ex VAT
$67.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $45.28
20+ $42.73
30+ $42.22
40+ $41.72
50+ $41.21
75+ $40.70
100+ $38.16
200+ $37.65
250+ $37.14
500+ $36.63
1000+ $35.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
25mm
Style:
SNP
Bolt Hole Centres:
50.8mm
Technical
Bore 25mm
L 80mm
H 36.5mm
H1 13.5mm
H2 71.5mm
J 50.8mm
Threads M10x1.50
A 36mm
A1 25mm
B3 44.4mm
s2 17.49mm
d2 38.1mm
Dynamic load Cr 14000 N
Static load Cor 7880 N
Rec max speed 6250 rpm
Weight 1.2 kg
Insert <a href="advanced_search_result.php?keywords=1025-25DECG+insonly">1025-25DECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
