SKU: SNP30-RHP

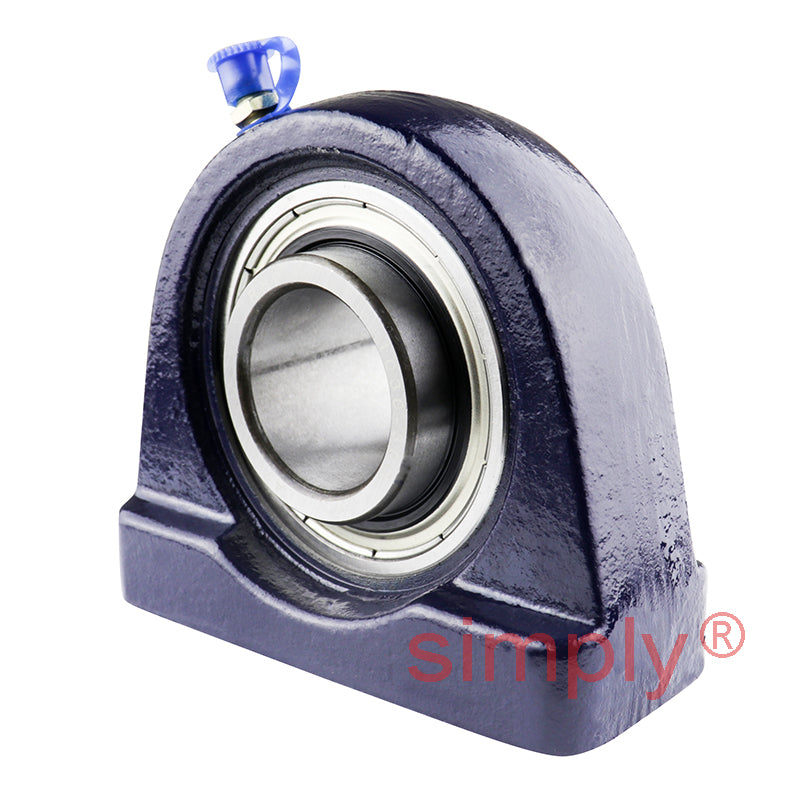

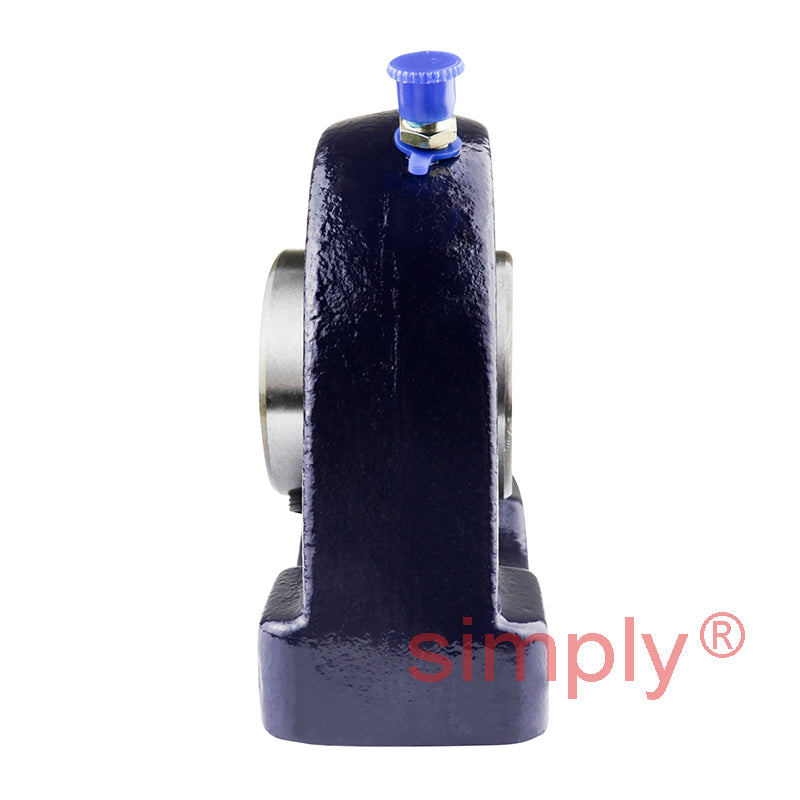

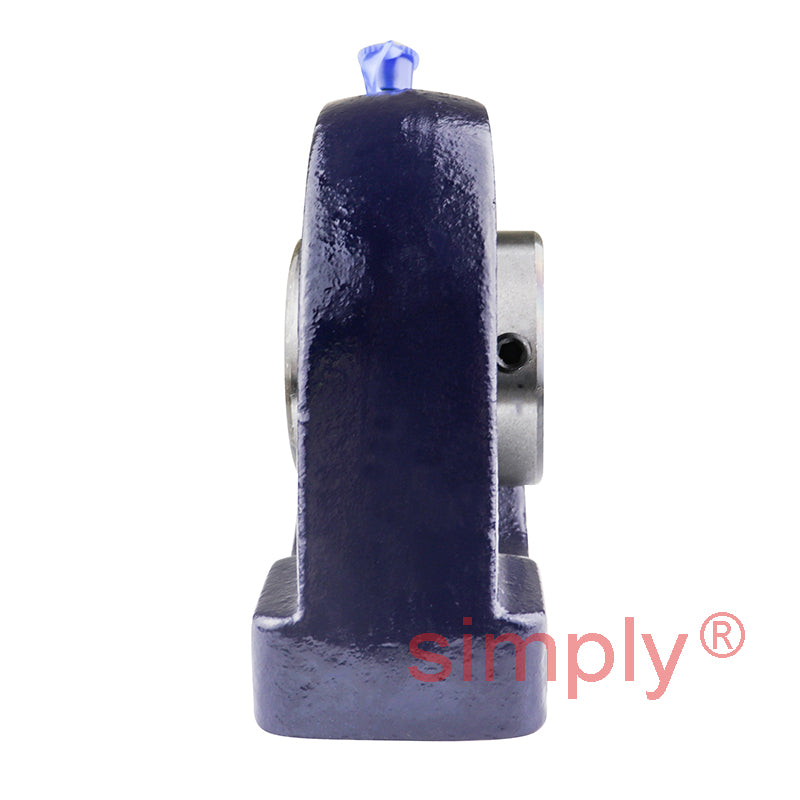

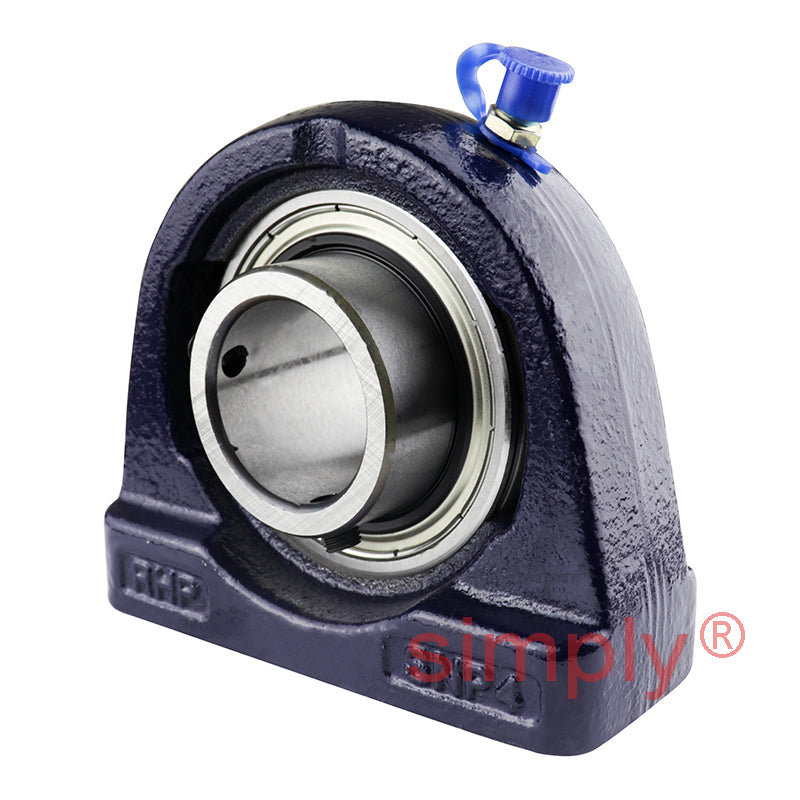

RHP SNP30 Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Full Width Insert

RHP SNP30 Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Grub Screw Full Width Insert
$71.13 ex VAT
$71.13 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.64
20+ $44.96
30+ $44.43
40+ $43.89
50+ $43.36
75+ $42.82
100+ $40.15
200+ $39.61
250+ $39.08
500+ $38.54
1000+ $37.47

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
SNP
Bolt Hole Centres:
76.2mm
Technical
Bore 30mm
L 96mm
H 42.9mm
H1 16.5mm
H2 83.9mm
J 76.2mm
Threads M10x1.50
A 40mm
A1 28mm
B 38.1mm
s 15.93mm
d1 40mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.8 kg
Insert <a href="advanced_search_result.php?keywords=1030-30G+insonly">1030-30G Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
