SKU: SNP30EC-RHP

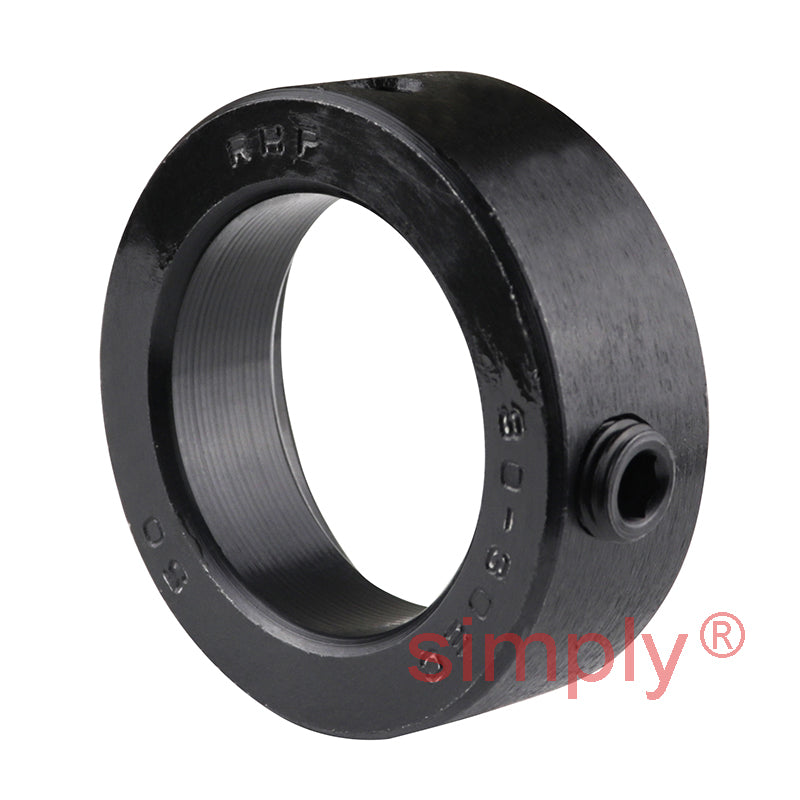

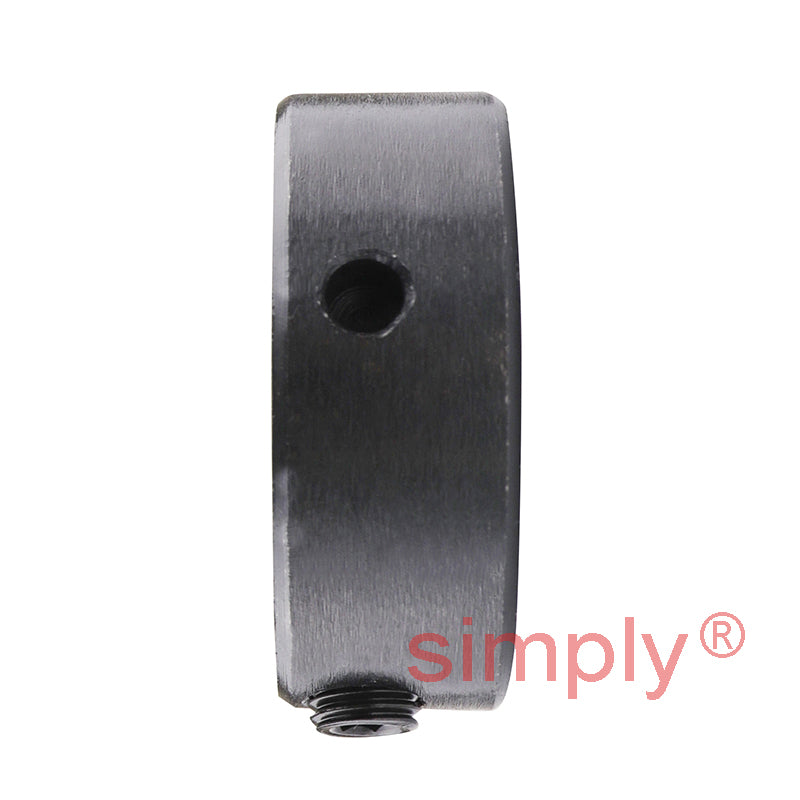

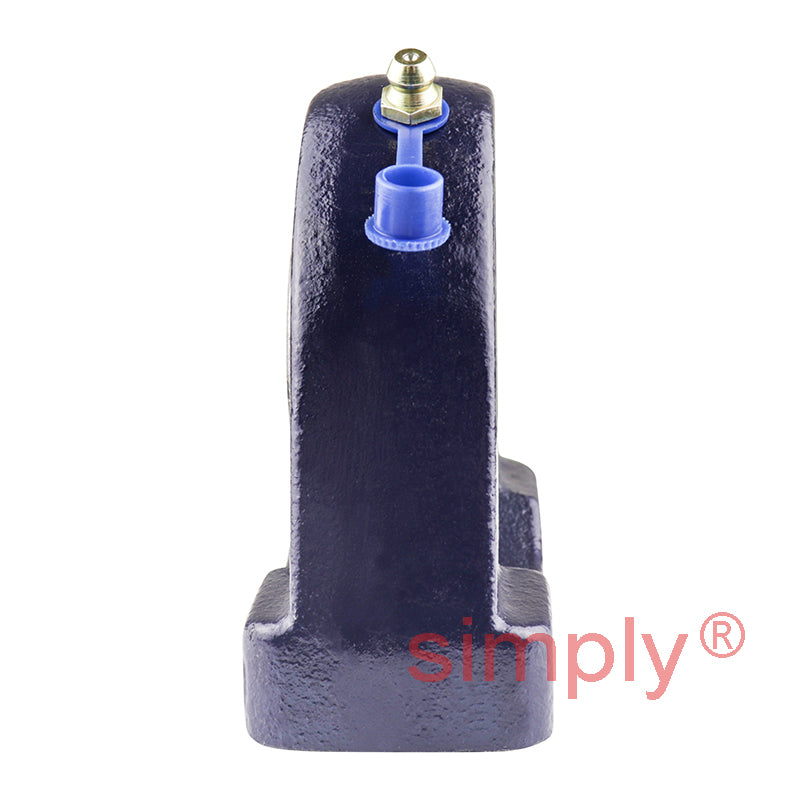

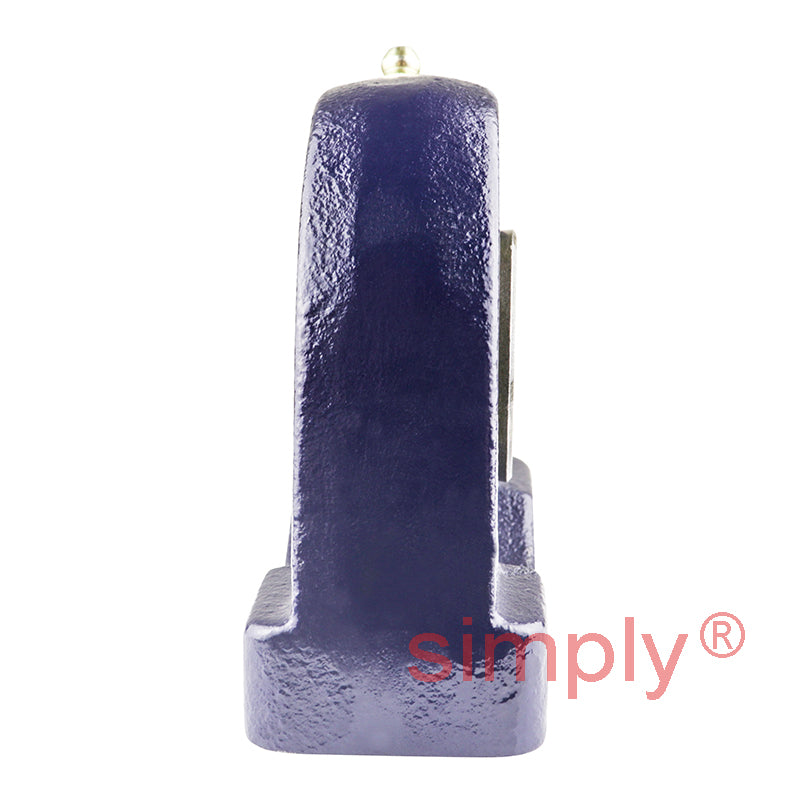

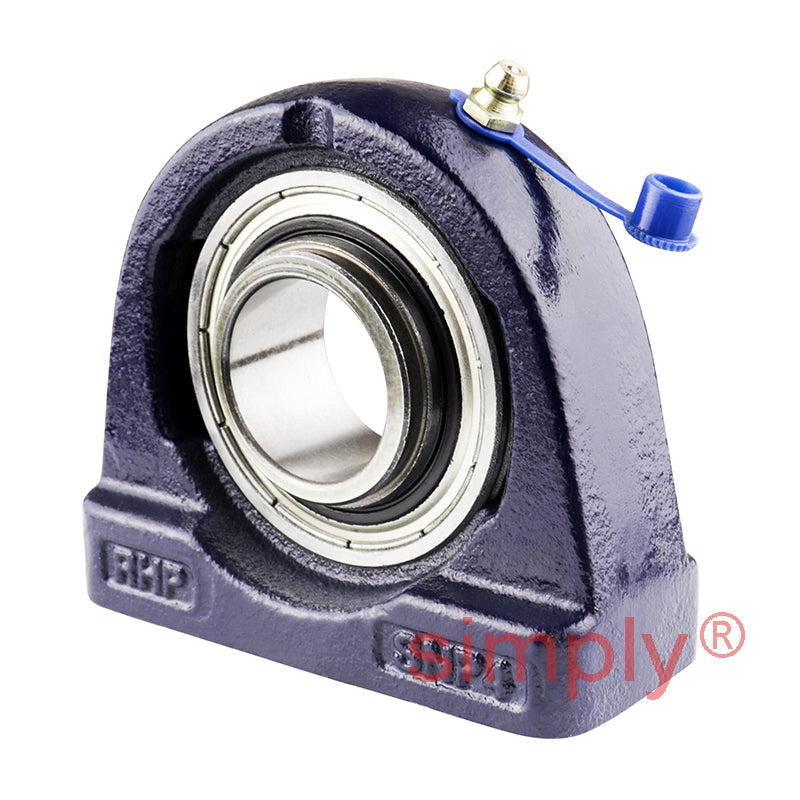

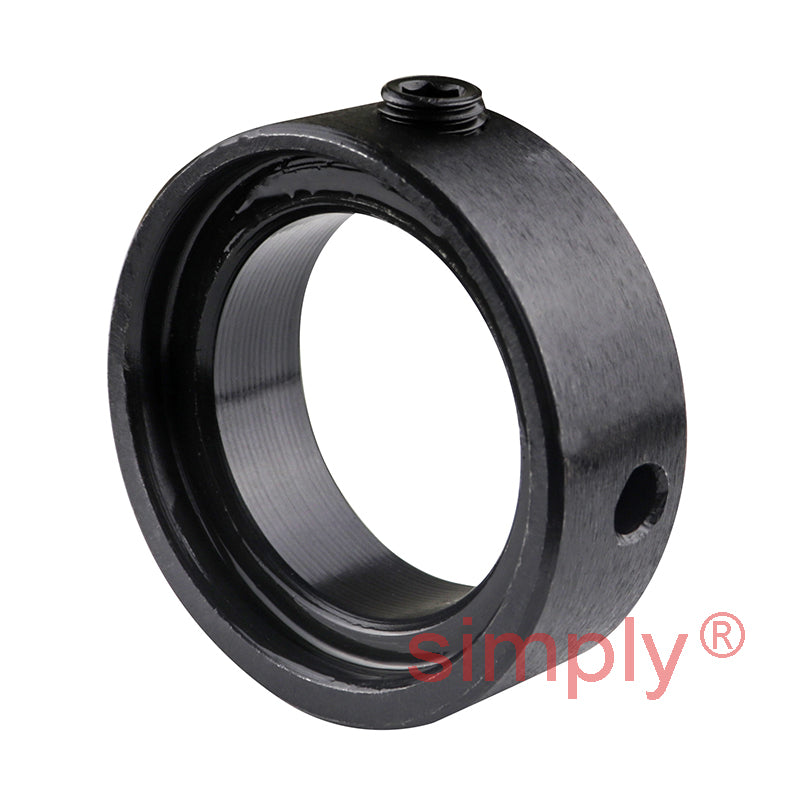

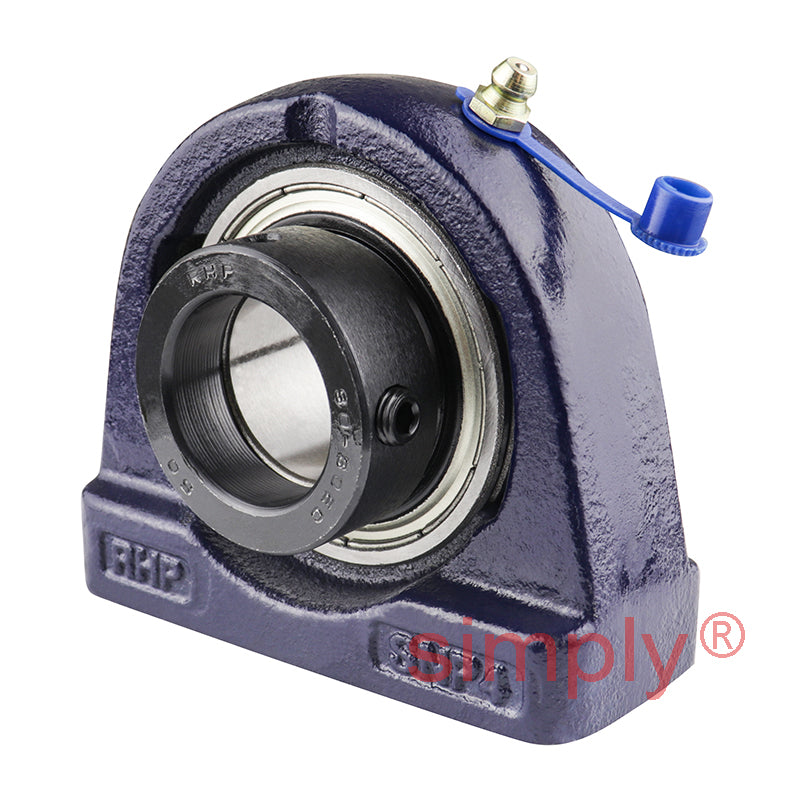

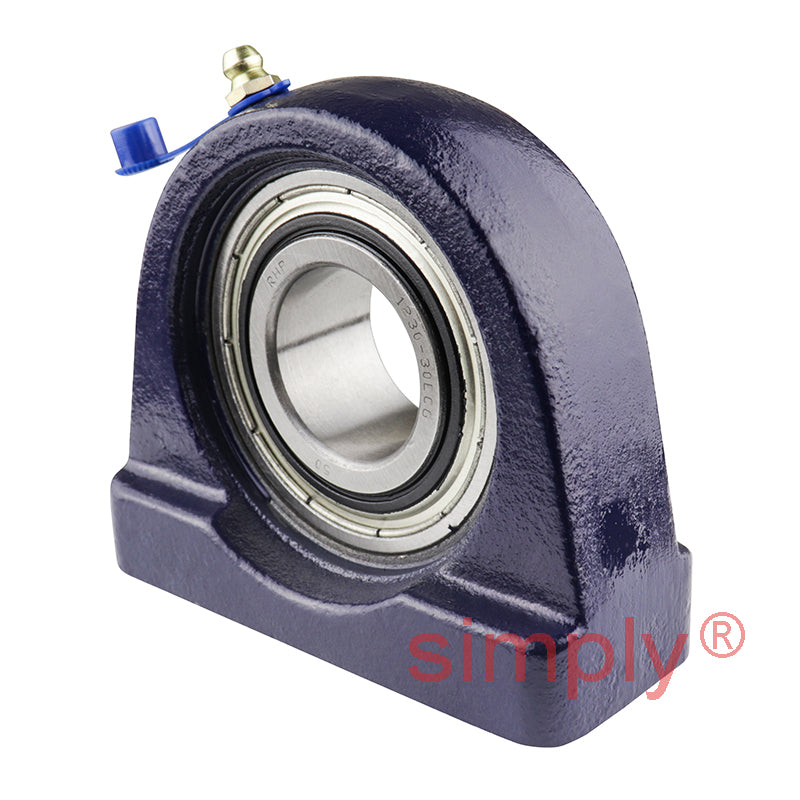

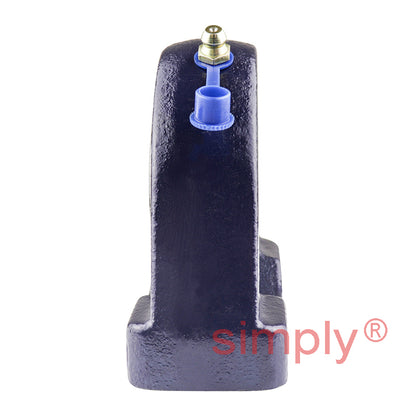

RHP SNP30EC Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Flat Back Collar Insert

RHP SNP30EC Threaded Base Small Footprint Pillow / Plummer Block and 30mm Bore Flat Back Collar Insert
$73.69 ex VAT
$73.69 ex VAT
Sale Sold out

In stock

Price Break
10+ $49.36
20+ $46.59
30+ $46.03
40+ $45.48
50+ $44.92
75+ $44.37
100+ $41.60
200+ $41.04
250+ $40.49
500+ $39.93
1000+ $38.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
30mm
Style:
SNP
Bolt Hole Centres:
76.2mm
Technical
Bore 30mm
L 96mm
H 42.9mm
H1 16.5mm
H2 83.9mm
J 76.2mm
Threads M10x1.50
A 40mm
A1 28mm
B2 35.68mm
s1 9.04mm
d2 44.45mm
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.8 kg
Insert <a href="advanced_search_result.php?keywords=1230-30ECG+insonly">1230-30ECG Click Here</a>
Casting group 4
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
