SKU: SNP35A-RHP

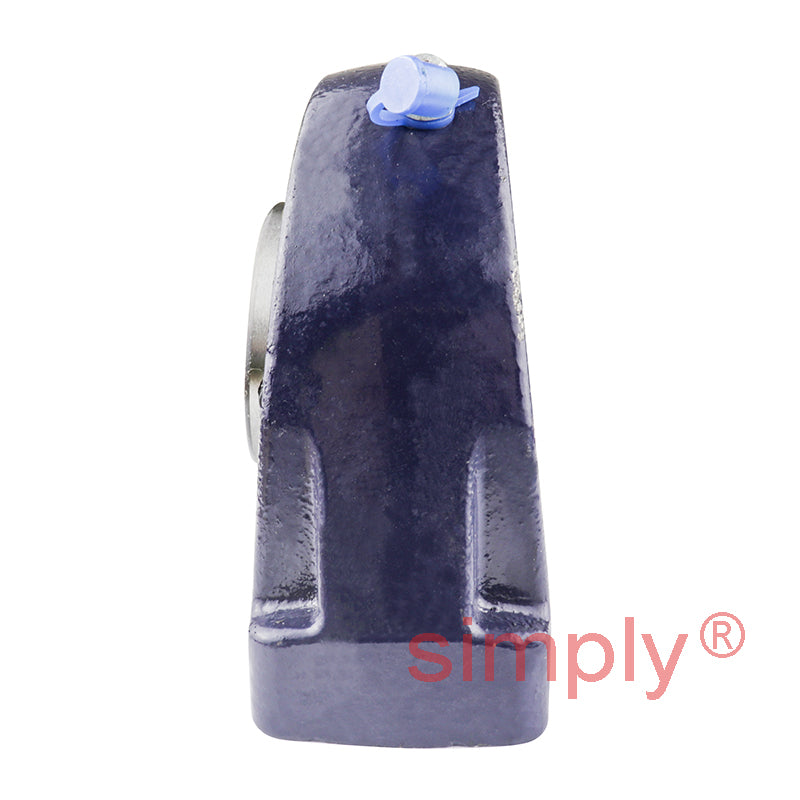

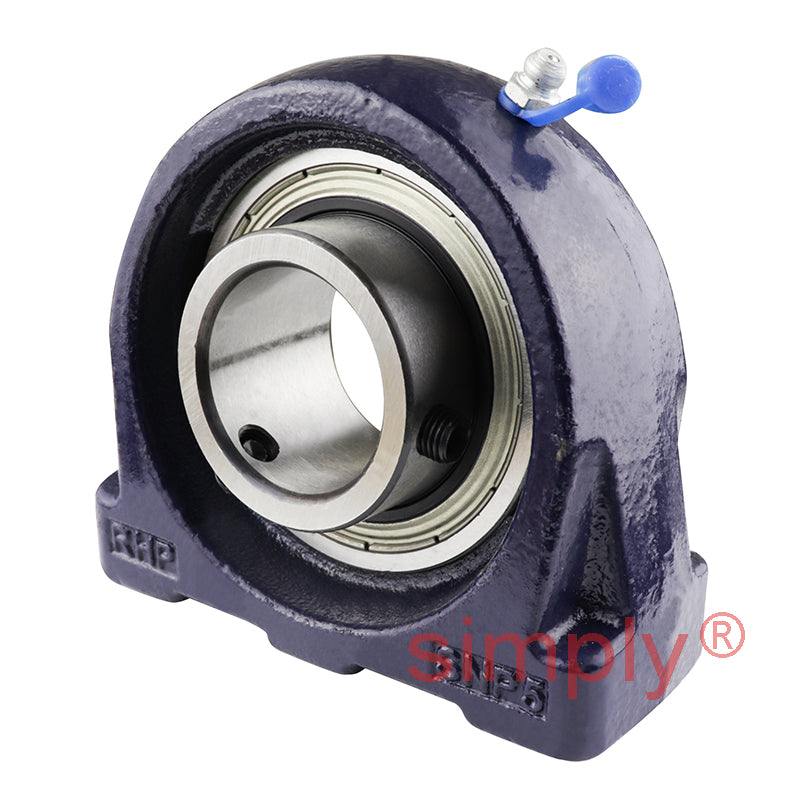

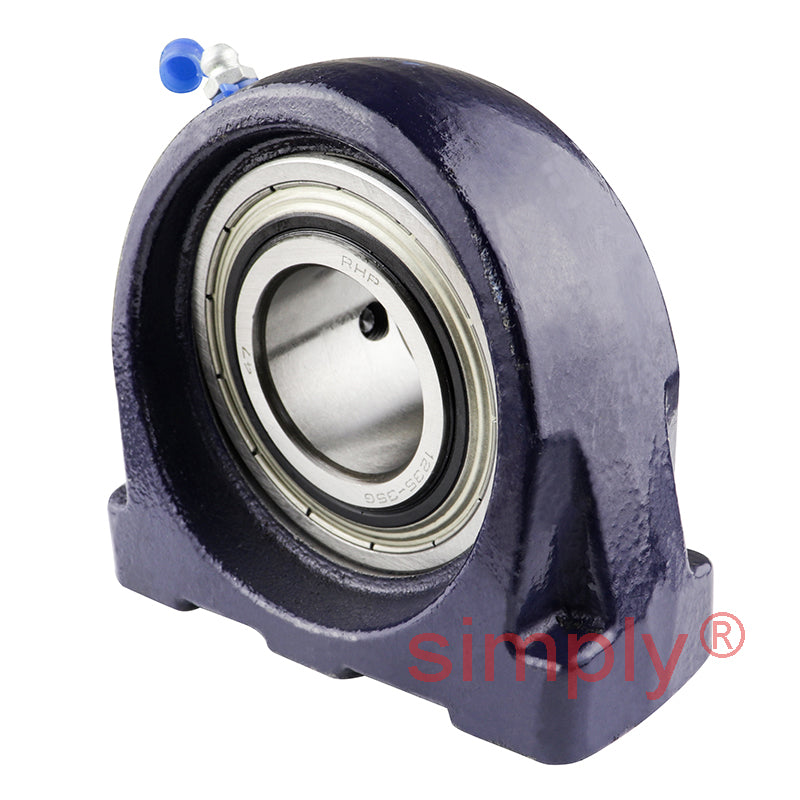

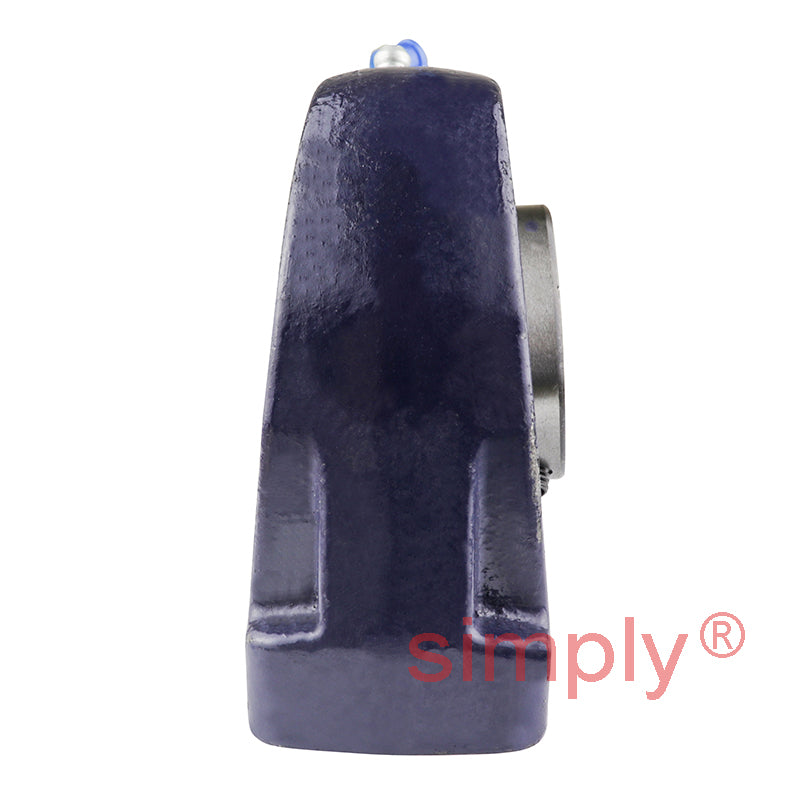

RHP SNP35A Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Grub Screw Flat Back Insert

RHP SNP35A Threaded Base Small Footprint Pillow / Plummer Block and 35mm Bore Grub Screw Flat Back Insert
$81.70 ex VAT
$81.70 ex VAT
Sale Sold out

In stock

Price Break
10+ $54.73
20+ $51.65
30+ $51.04
40+ $50.42
50+ $49.81
75+ $49.19
100+ $46.12
200+ $45.50
250+ $44.89
500+ $44.27
1000+ $43.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
35mm
Style:
SNP
Bolt Hole Centres:
82.6mm
Technical
Bore 35mm
L 110mm
H 47.6mm
H1 19.5mm
H2 95.6mm
J 82.6mm
Threads M10x1.50
A 45mm
A1 30mm
B1 34.9mm
s1 9.55mm
d1 46.69mm
Dynamic load Cr 25700 N
Static load Cor 15300 N
Rec max speed 4500 rpm
Weight 2.4 kg
Insert <a href="advanced_search_result.php?keywords=1235-35AG+insonly">1235-35AG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
