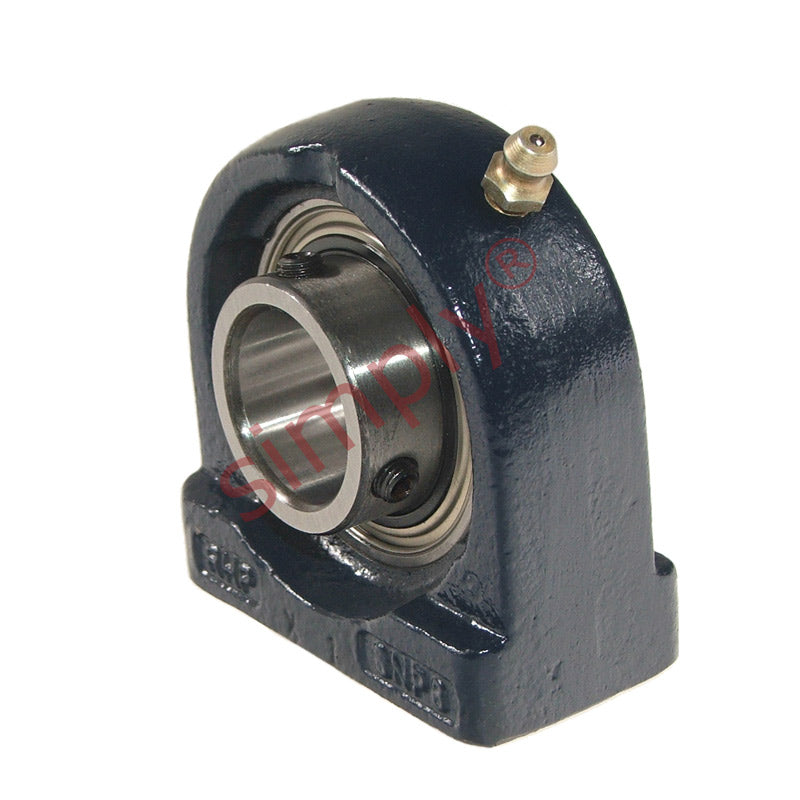

• RHP SNP40A Threaded Base Small Footprint Pillow / Plummer Block and 40mm Bore Grub Screw Flat Back Insert
1 1

SKU: SNP40A-RHP

RHP SNP40A Threaded Base Small Footprint Pillow / Plummer Block and 40mm Bore Grub Screw Flat Back Insert

RHP SNP40A Threaded Base Small Footprint Pillow / Plummer Block and 40mm Bore Grub Screw Flat Back Insert
$95.40 ex VAT
$95.40 ex VAT
Sale Sold out

In stock

Price Break
10+ $63.90
20+ $60.31
30+ $59.59
40+ $58.87
50+ $58.16
75+ $57.44
100+ $53.85
200+ $53.13
250+ $52.41
500+ $51.69
1000+ $50.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
SNP
Bolt Hole Centres:
88.9mm
Technical
Bore 40mm
L 118mm
H 49.2mm
H1 19.5mm
H2 101.7mm
J 88.9mm
Threads M12x1.75
A 47mm
A1 32mm
B1 41.18mm
s1 11.05mm
d1 52.7mm
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1240-40AG+insonly">1240-40AG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
