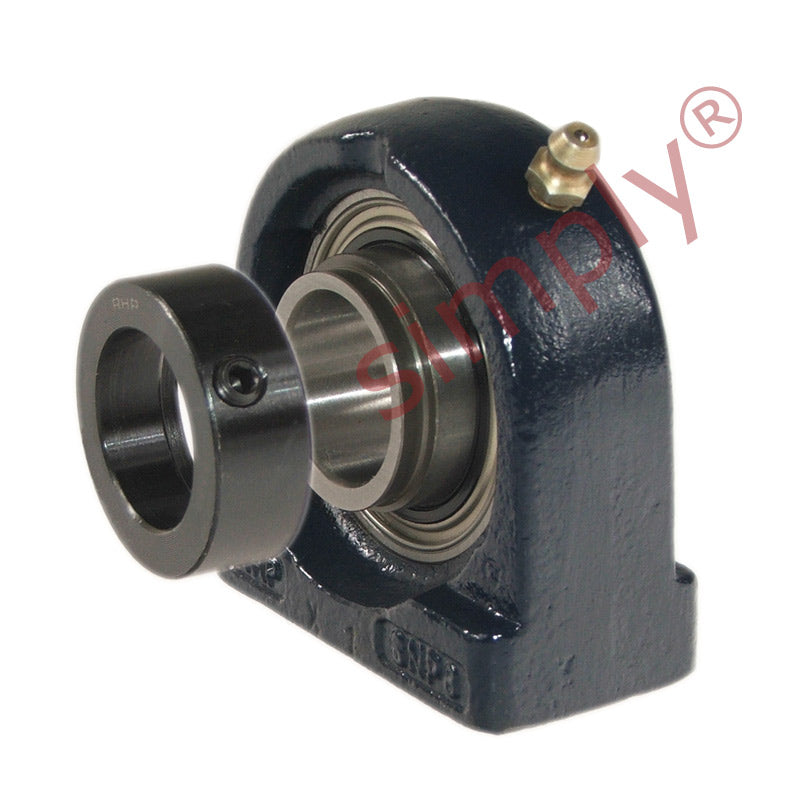

• RHP SNP40DEC Threaded Base Small Footprint Pillow / Plummer Block and 40mm Bore Full Width Collar Insert
1 1

SKU: SNP40DEC-RHP

RHP SNP40DEC Threaded Base Small Footprint Pillow / Plummer Block and 40mm Bore Full Width Collar Insert

RHP SNP40DEC Threaded Base Small Footprint Pillow / Plummer Block and 40mm Bore Full Width Collar Insert
$112.21 ex VAT
$112.21 ex VAT
Sale Sold out

In stock

Price Break
10+ $75.16
20+ $70.93
30+ $70.09
40+ $69.25
50+ $68.40
75+ $67.56
100+ $63.33
200+ $62.49
250+ $61.65
500+ $60.80
1000+ $59.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
SNP
Bolt Hole Centres:
88.9mm
Technical
Bore 40mm
L 118mm
H 49.2mm
H1 19.5mm
H2 101.7mm
J 88.9mm
Threads M12x1.75
A 47mm
A1 32mm
B3 56.34mm
s2 21.46mm
d2 60.3mm
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1040-40DECG+insonly">1040-40DECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
