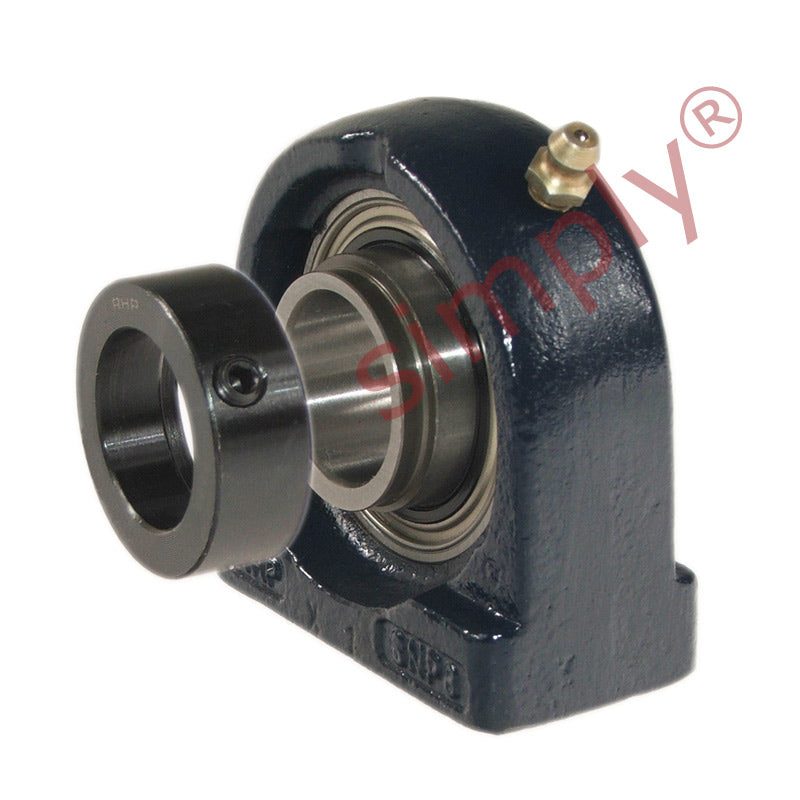

• RHP SNP40EC Threaded Base Small Footprint Pillow / Plummer Block and 40mm Bore Flat Back Collar Insert
1 1

SKU: SNP40EC-RHP

RHP SNP40EC Threaded Base Small Footprint Pillow / Plummer Block and 40mm Bore Flat Back Collar Insert

RHP SNP40EC Threaded Base Small Footprint Pillow / Plummer Block and 40mm Bore Flat Back Collar Insert
$102.59 ex VAT
$102.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $68.72
20+ $64.86
30+ $64.09
40+ $63.31
50+ $62.54
75+ $61.77
100+ $57.91
200+ $57.14
250+ $56.37
500+ $55.59
1000+ $54.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
40mm
Style:
SNP
Bolt Hole Centres:
88.9mm
Technical
Bore 40mm
L 118mm
H 49.2mm
H1 19.5mm
H2 101.7mm
J 88.9mm
Threads M12x1.75
A 47mm
A1 32mm
B2 43.64mm
s1 11.05mm
d2 60.3mm
Dynamic load Cr 32500 N
Static load Cor 19900 N
Rec max speed 4000 rpm
Weight 2.8 kg
Insert <a href="advanced_search_result.php?keywords=1240-40ECG+insonly">1240-40ECG Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
