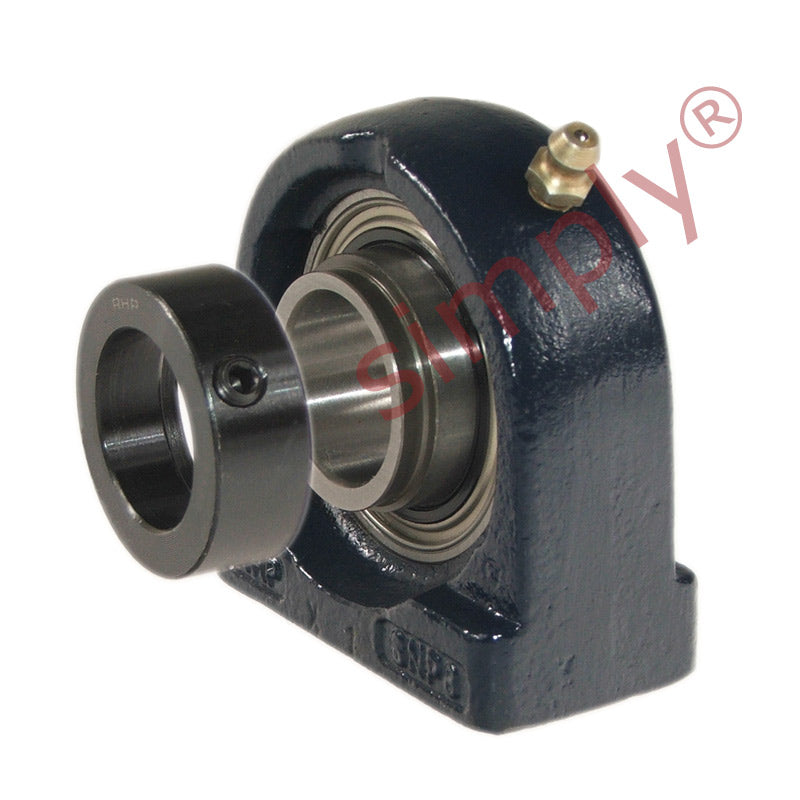

• RHP SNP45DEC Threaded Base Small Footprint Pillow / Plummer Block and 45mm Bore Full Width Collar Insert
1 1

SKU: SNP45DEC-RHP

RHP SNP45DEC Threaded Base Small Footprint Pillow / Plummer Block and 45mm Bore Full Width Collar Insert

RHP SNP45DEC Threaded Base Small Footprint Pillow / Plummer Block and 45mm Bore Full Width Collar Insert
$129.88 ex VAT
$129.88 ex VAT
Sale Sold out

In stock

Price Break
10+ $87.00
20+ $82.11
30+ $81.14
40+ $80.16
50+ $79.18
75+ $78.20
100+ $73.32
200+ $72.34
250+ $71.36
500+ $70.38
1000+ $68.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
45mm
Style:
SNP
Bolt Hole Centres:
95.3mm
Technical
Bore 45mm
L 127mm
H 54mm
H1 19.5mm
H2 110mm
J 95.3mm
Threads M12X1.75
A 48mm
A1 33mm
B3 56.34mm
s2 21.46mm
d2 63.5mm
Dynamic load Cr 32500 N
Static load Cor 20500 N
Rec max speed 3700 rpm
Weight 3.5 kg
Insert <a href="advanced_search_result.php?keywords=1045-45DECG+insonly">1045-45DECG Click Here</a>
Casting group 7
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
