SKU: SNP50-RHP

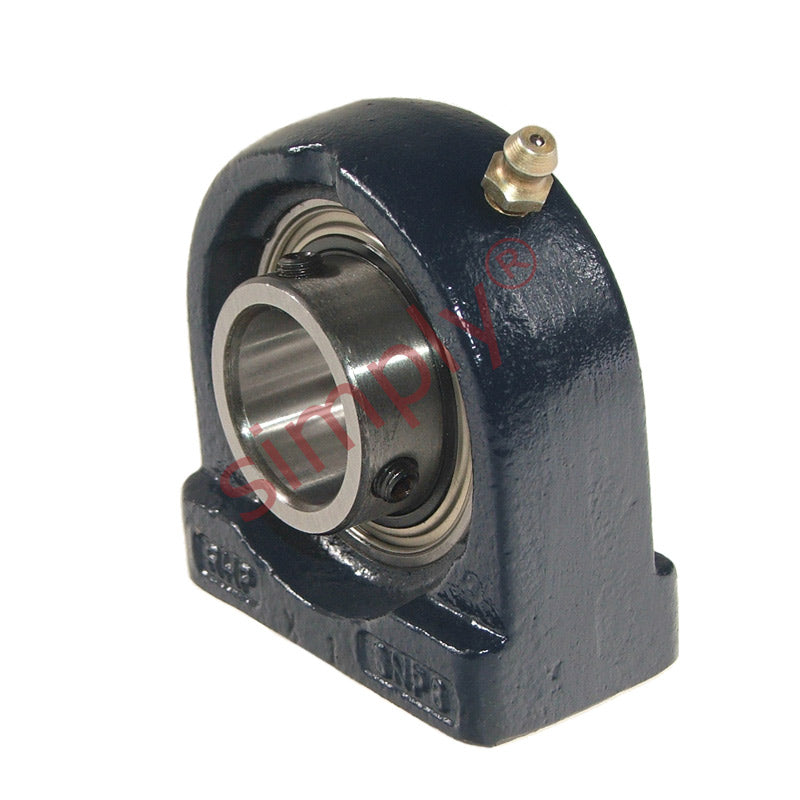

RHP SNP50 Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Grub Screw Full Width Insert

Name: RHP SNP50 Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Grub Screw Full Width Insert
Brand: RHP
SKU: SNP50-RHP
Price: 118.49 USD
Availability: InStock

$118.49 ex VAT

Sale Sold out

In stock

Price Break

10+ $79.37

20+ $74.91

30+ $74.02

40+ $73.13

50+ $72.24

75+ $71.35

100+ $66.89

200+ $66.00

250+ $65.10

500+ $64.21

1000+ $62.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 50mm
Style:: SNP
Bolt Hole Centres:: 101.6mm

Technical

Bore	50mm
L	135mm
H	57.2mm
H1	23.5mm
H2	115mm
J	101.6mm
Threads	M16x2.0
A	54mm
A1	34mm
B	51.59mm
s	19.1mm
d1	62.2mm
Dynamic load Cr	35000 N
Static load Cor	23200 N
Rec max speed	3400 rpm
Weight	3.3 kg
Insert	<a href="advanced_search_result.php?keywords=1050-50G+insonly">1050-50G Click Here</a>
Casting group	8
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
