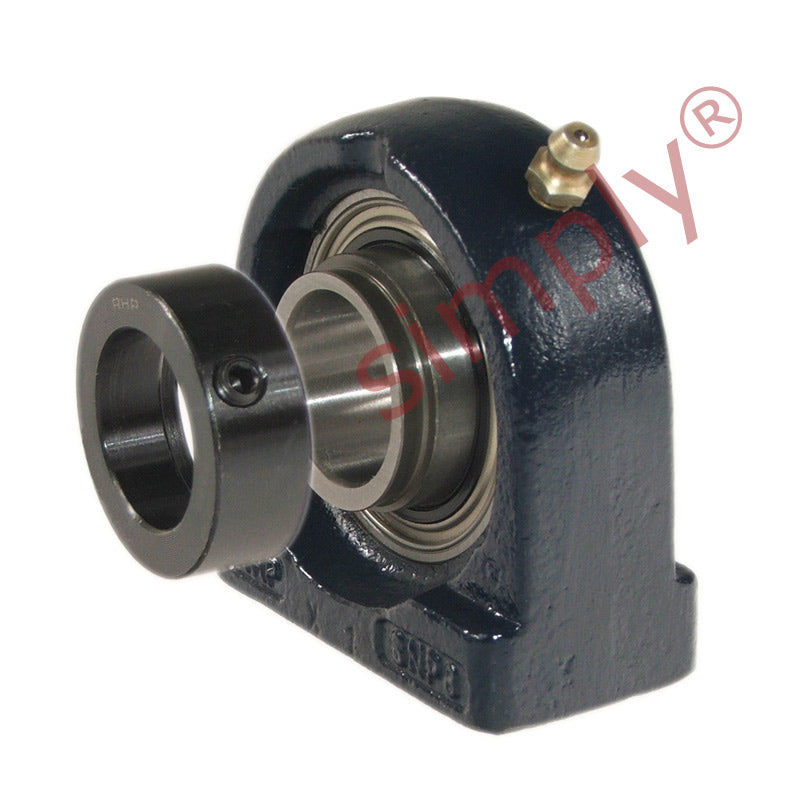

• RHP SNP50DEC Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Full Width Collar Insert
1 1

SKU: SNP50DEC-RHP

RHP SNP50DEC Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Full Width Collar Insert

RHP SNP50DEC Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Full Width Collar Insert
$140.79 ex VAT
$140.79 ex VAT
Sale Sold out

In stock

Price Break
10+ $94.30
20+ $89.00
30+ $87.94
40+ $86.88
50+ $85.83
75+ $84.77
100+ $79.47
200+ $78.41
250+ $77.35
500+ $76.29
1000+ $74.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
SNP
Bolt Hole Centres:
101.6mm
Technical
Bore 50mm
L 135mm
H 57.2mm
H1 23.5mm
H2 115mm
J 101.6mm
Threads M16x2.0
A 54mm
A1 34mm
B3 62.7mm
s2 24.65mm
d2 69.85mm
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.3 kg
Insert <a href="advanced_search_result.php?keywords=1050-50DECG+insonly">1050-50DECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
