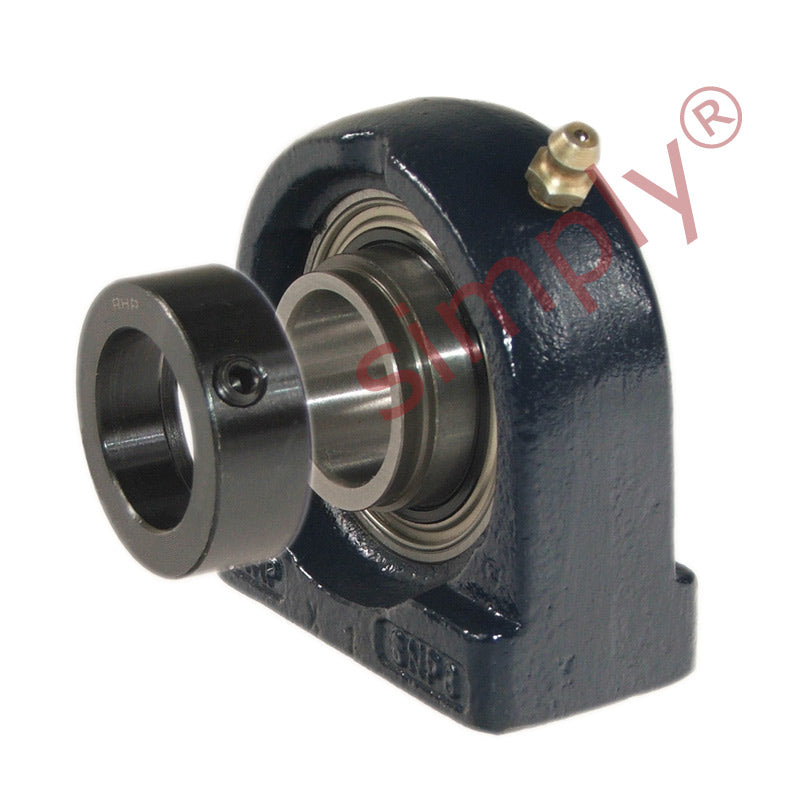

• RHP SNP50EC Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Flat Back Collar Insert
1 1

SKU: SNP50EC-RHP

RHP SNP50EC Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Flat Back Collar Insert

RHP SNP50EC Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Flat Back Collar Insert
$129.04 ex VAT
$129.04 ex VAT
Sale Sold out

In stock

Price Break
10+ $86.44
20+ $81.58
30+ $80.61
40+ $79.64
50+ $78.67
75+ $77.70
100+ $72.84
200+ $71.87
250+ $70.90
500+ $69.93
1000+ $67.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
50mm
Style:
SNP
Bolt Hole Centres:
101.6mm
Technical
Bore 50mm
L 135mm
H 57.2mm
H1 23.5mm
H2 115mm
J 101.6mm
Threads M16x2.0
A 54mm
A1 34mm
B2 43.64mm
s1 11.05mm
d2 69.85mm
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 3.3 kg
Insert <a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a>
Casting group 8
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
