SKU: SNP55-RHP

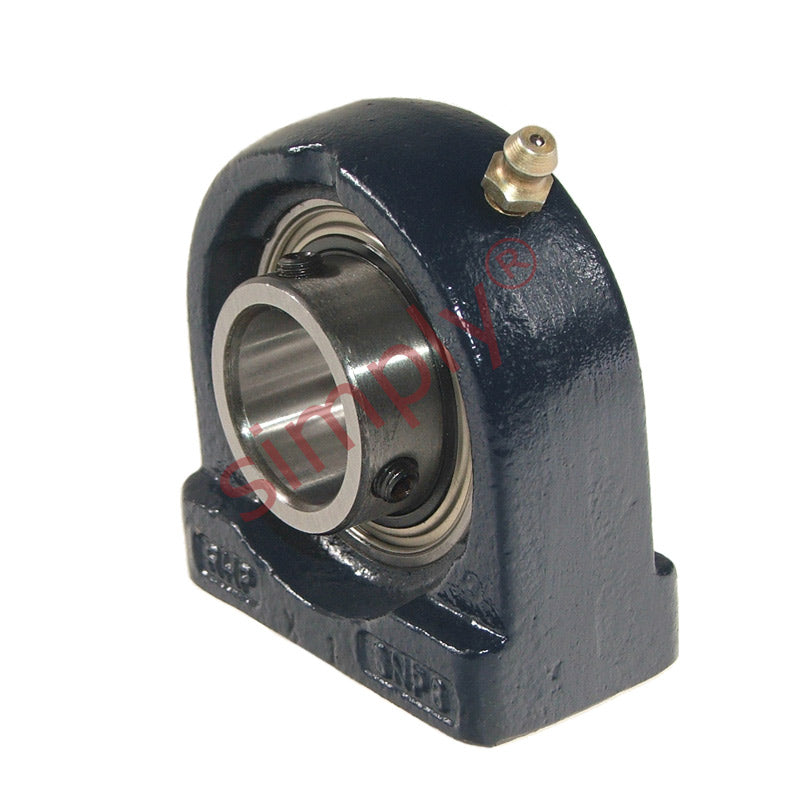

RHP SNP55 Threaded Base Small Footprint Pillow / Plummer Block and 55mm Bore Grub Screw Full Width Insert

Name: RHP SNP55 Threaded Base Small Footprint Pillow / Plummer Block and 55mm Bore Grub Screw Full Width Insert
Brand: RHP
SKU: SNP55-RHP
Price: 149.65 USD
Availability: InStock

$149.65 ex VAT

Sale Sold out

In stock

Price Break

10+ $100.24

20+ $94.61

30+ $93.48

40+ $92.36

50+ $91.23

75+ $90.10

100+ $84.47

200+ $83.35

250+ $82.22

500+ $81.09

1000+ $78.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 55mm
Style:: SNP
Bolt Hole Centres:: 118mm

Technical

Bore	55mm
L	154mm
H	63.5mm
H1	26.5mm
H2	130mm
J	118mm
Threads	M16x2.00
A	60mm
A1	41.5mm
B	55.55mm
s	22.28mm
d1	68.81mm
Dynamic load Cr	43500 N
Static load Cor	29200 N
Rec max speed	3100 rpm
Weight	4 kg
Insert	<a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a>
Casting group	9
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
