SKU: SNP60-RHP

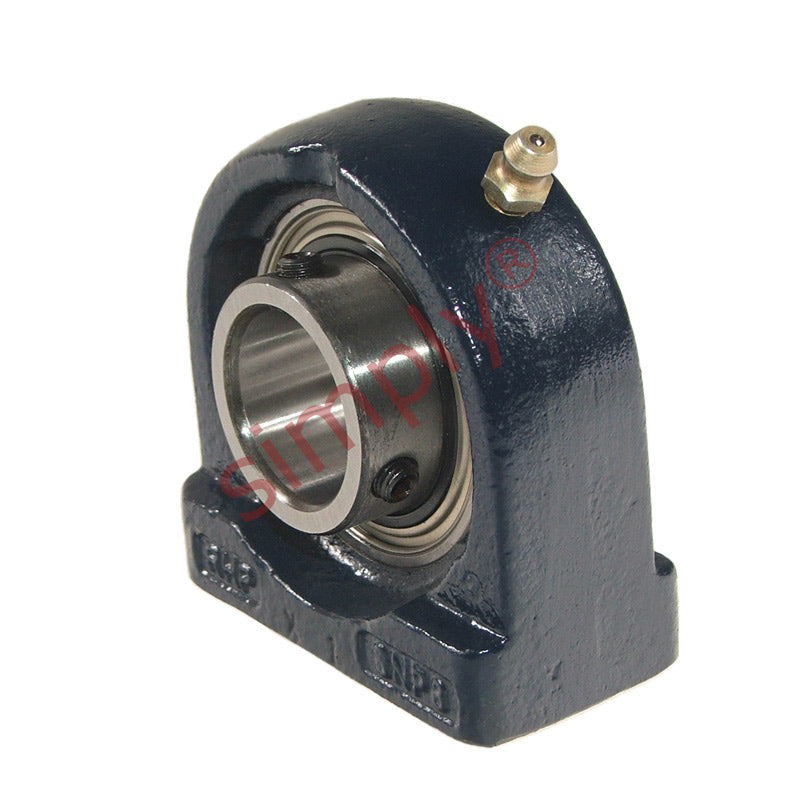

RHP SNP60 Threaded Base Small Footprint Pillow / Plummer Block and 60mm Bore Grub Screw Full Width Insert

Name: RHP SNP60 Threaded Base Small Footprint Pillow / Plummer Block and 60mm Bore Grub Screw Full Width Insert
Brand: RHP
SKU: SNP60-RHP
Price: 201.24 USD
Availability: InStock

$201.24 ex VAT

Sale Sold out

In stock

Price Break

10+ $134.80

20+ $127.22

30+ $125.71

40+ $124.19

50+ $122.68

75+ $121.16

100+ $113.59

200+ $112.08

250+ $110.56

500+ $109.05

1000+ $106.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 60mm
Style:: SNP
Bolt Hole Centres:: 118mm

Technical

Bore	60mm
L	154mm
H	69.9mm
H1	26.5mm
H2	141.5mm
J	118mm
Threads	M16x2.00
A	60mm
A1	41.5mm
B	65.07mm
s	25.45mm
d1	75.34mm
Dynamic load Cr	48000 N
Static load Cor	33000 N
Rec max speed	2800 rpm
Weight	4.6 kg
Insert	<a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a>
Casting group	10
Grease nipple thread	1/4 UNF, 1/4 inch x 28 TPI
