SKU: SONL218-518-SKF

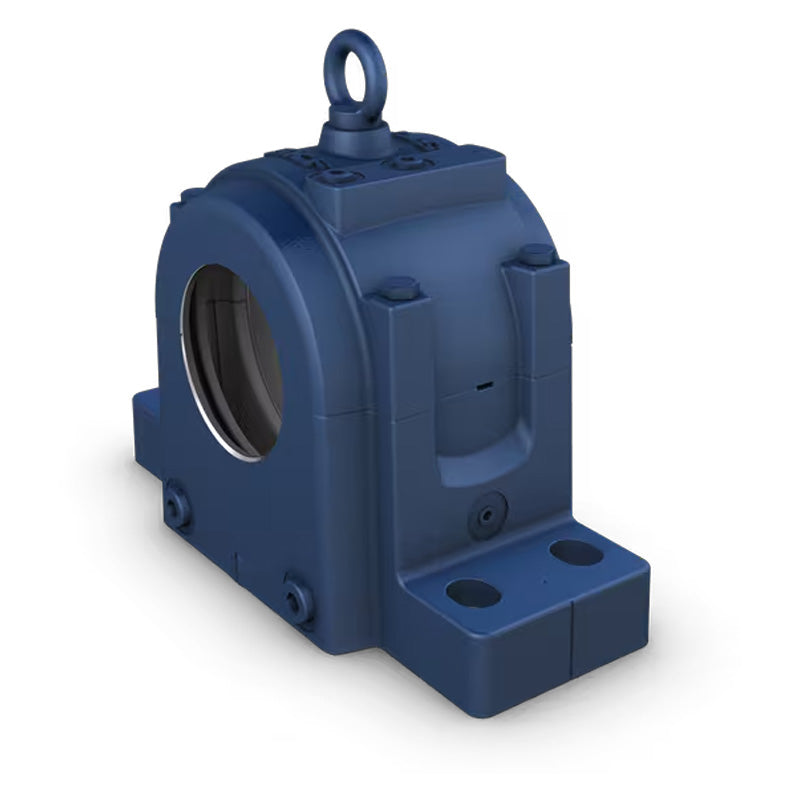

SKF SONL218-518 Cast Iron Split Pillow Block Housing
SKF SONL218-518 Cast Iron Split Pillow Block Housing
Regular price
$2,799.63
ex VAT
Regular price
Sale price
$2,799.63
ex VAT
In stock
Price Break
4+
$1,875.28
9+
$1,769.92
19+
$1,748.85
29+
$1,727.78
39+
$1,706.71
49+
$1,685.64
59+
$1,580.29
69+
$1,559.22
79+
$1,538.15
89+
$1,517.08
99+
$1,474.94
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 290mm
Technical
Technical
| da | 80mm |
|---|---|
| Ca | 50mm |
| Da | 160mm |
| A | 170mm |
| A1 | 120mm |
| A2 | 142mm |
| AA | 180mm |
| AB | 190mm |
| d1 | 100mm |
| B1 | 75mm |
| H | 245mm |
| H0 | 298mm |
| H1 | 135mm |
| H2 | 45mm |
| J | 290mm |
| J1 | 70mm |
| L | 360mm |
| N | 28mm |
| N1 | 22mm |
| S | 95mm |
| PG | G 3/8 |
| P1 | 50mm |
| P2 | 41mm |
| RG | G 3/4 |
| R1 | 128mm |
| R2 | 22mm |
| O1 | 97mm |
| O2 | 142mm |
| J6 | 320mm |
| N4 max | 8mm |
| ba | 42mm |
| bb | 137mm |
| s2 | 19mm |
| Weight | 33 kg |
