SKU: SONL220-520-SKF

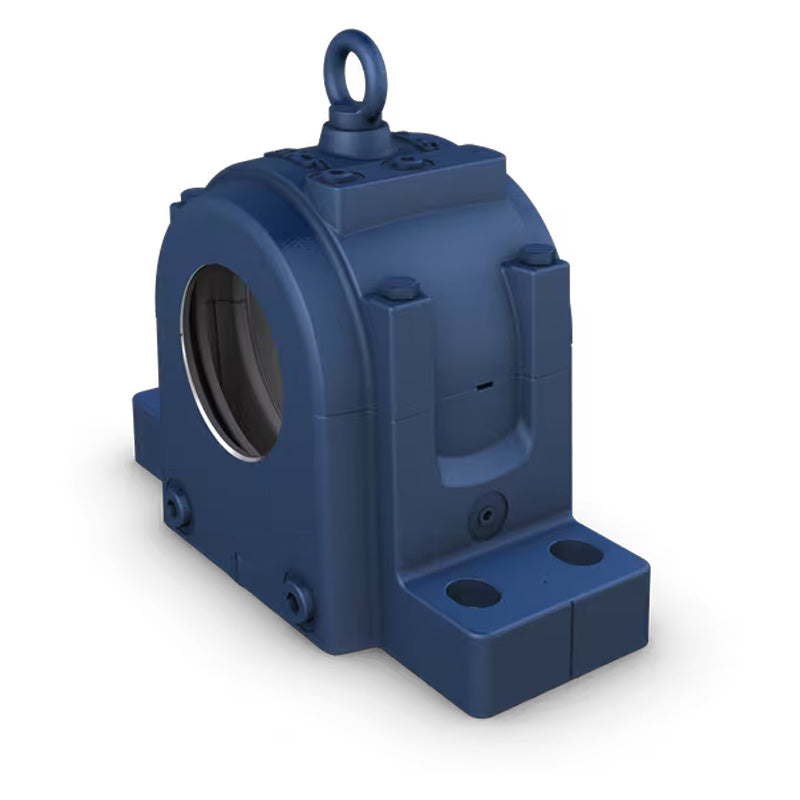

SKF SONL220-520 Cast Iron Split Pillow Block Housing
SKF SONL220-520 Cast Iron Split Pillow Block Housing
Regular price
$3,166.83
ex VAT
Regular price
Sale price
$3,166.83
ex VAT
In stock
Price Break
4+
$2,121.23
9+
$2,002.06
19+
$1,978.23
29+
$1,954.39
39+
$1,930.56
49+
$1,906.73
59+
$1,787.56
69+
$1,763.72
79+
$1,739.89
89+
$1,716.05
99+
$1,668.39
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 320mm
Technical
Technical
| da | 87.312mm |
|---|---|
| Ca | 60mm |
| Da | 180mm |
| A | 186mm |
| A1 | 130mm |
| A2 | 150mm |
| AA | 196mm |
| AB | 206mm |
| d1 | 112mm |
| B1 | 80mm |
| H | 270mm |
| H0 | 323mm |
| H1 | 145mm |
| H2 | 50mm |
| J | 320mm |
| J1 | 75mm |
| L | 400mm |
| N | 32mm |
| N1 | 26mm |
| S | 103mm |
| PG | G 3/8 |
| P1 | 50mm |
| P2 | 47mm |
| RG | G 3/4 |
| R1 | 144mm |
| R2 | 22mm |
| O1 | 97mm |
| O2 | 150mm |
| J6 | 350mm |
| N4 max | 8mm |
| ba | 47mm |
| bb | 150mm |
| s2 | 25mm |
| Weight | 42 kg |
