SKU: SONL232-532-SKF

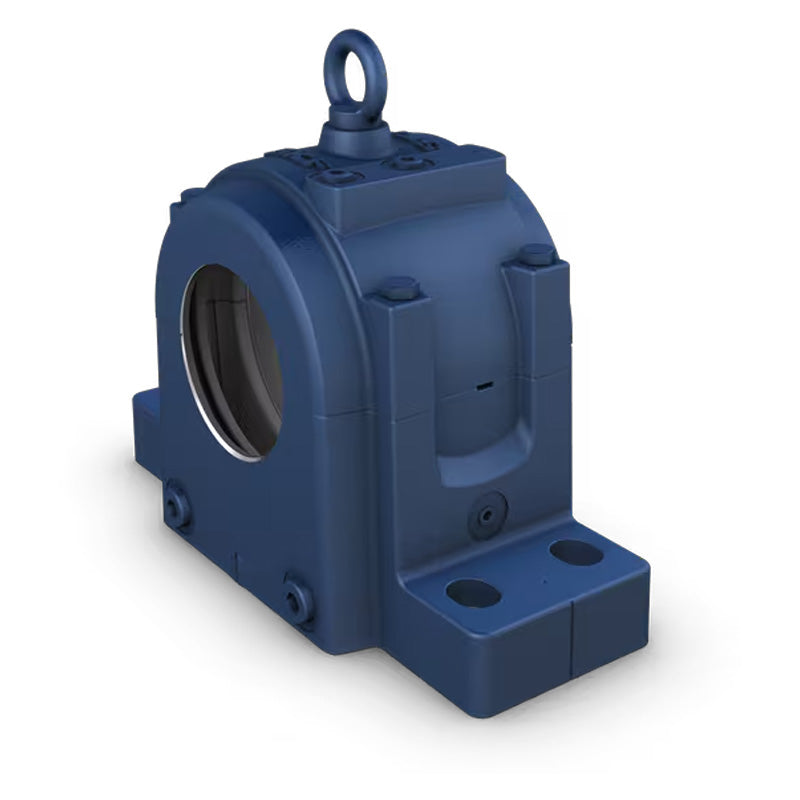

SKF SONL232-532 Cast Iron Split Pillow Block Housing
SKF SONL232-532 Cast Iron Split Pillow Block Housing
Regular price
$4,208.01
ex VAT
Regular price
Sale price
$4,208.01
ex VAT
In stock
Price Break
4+
$2,818.65
9+
$2,660.30
19+
$2,628.63
29+
$2,596.96
39+
$2,565.29
49+
$2,533.62
59+
$2,375.27
69+
$2,343.60
79+
$2,311.93
89+
$2,280.26
99+
$2,216.92
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 470mm
Technical
Technical
| da | 138.112mm |
|---|---|
| Ca | 104mm |
| Da | 290mm |
| A | 278mm |
| A1 | 205mm |
| A2 | 196mm |
| AA | 297mm |
| AB | 316mm |
| d1 | 178mm |
| B1 | 118mm |
| H | 406mm |
| H0 | 477mm |
| H1 | 215mm |
| H2 | 65mm |
| J | 470mm |
| J1 | 120mm |
| L | 560mm |
| N | 42mm |
| N1 | 35mm |
| S | 158mm |
| PG | G 3/8 |
| P1 | 65mm |
| P2 | 78mm |
| RG | G 3/4 |
| R1 | 252mm |
| R2 | 26mm |
| O1 | 121mm |
| O2 | 196mm |
| J6 | 480mm |
| N4 max | 12mm |
| ba | 73mm |
| bb | 231mm |
| s2 | 42mm |
| Weight | 141 kg |
