SKU: SP37-M3200-CLR

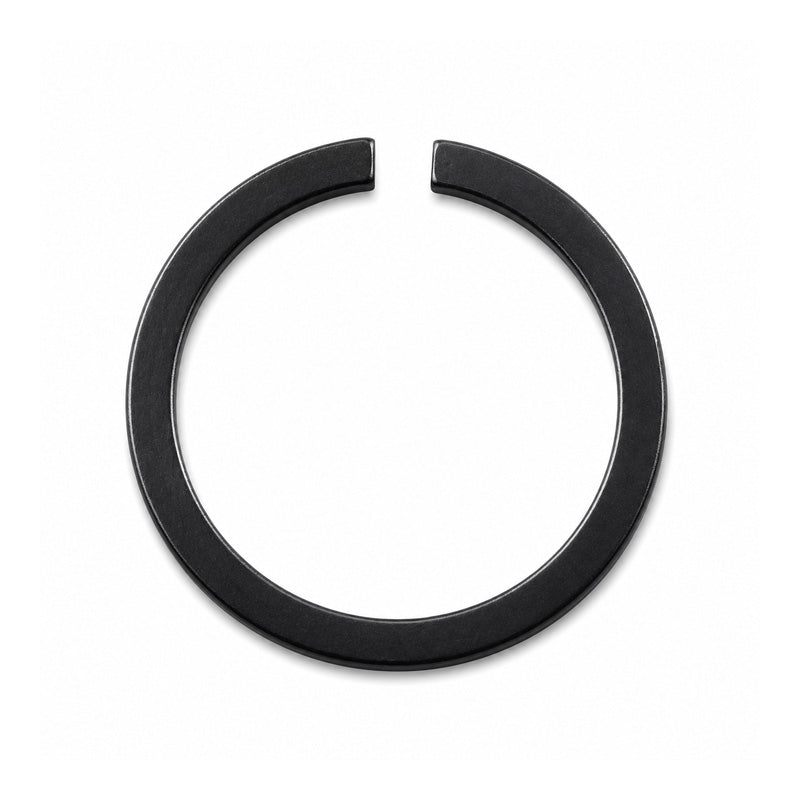

Clearance SP37 Snap Ring to Suit 37mm Outside Diameter of Bearing 2mm Width
Clearance SP37 Snap Ring to Suit 37mm Outside Diameter of Bearing 2mm Width
Out of stock
Description
Description
|
Flat Wire Snap Rings for Ball and Roller Bearings: These retainers are designed to fit into a groove in the outer track of ball or roller bearings. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place. The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52. (These snap rings have a width of 2mm which is slightly larger than normal. Please ensure they will suit your intended purpose before purchasing.) |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 34mm
- Shaft Size:
- 37mm
Technical
Technical
| d1 | 37mm |
|---|---|
| s | 2mm (Tolerance -0.1) |
| b | 3.25mm (Tolerance -0.15) |
| d3 | 34mm (Tolerance 0.4) |
| e approx | 3mm |
| r min | 0.4mm |
| d2 | 34.77mm (Tolerance -0.25) |
| m | 1.35mm (Tolerance 0.3) |
| C2 | 41.3mm |
| FN | 20.7kN |
| FR | 13.6kN |
| g | 2 |
| FRg | 2.45kN |
| kN | 26.6mm |
| Max Rpm x1000 | 10 |
| Weight | 0.0034g |
