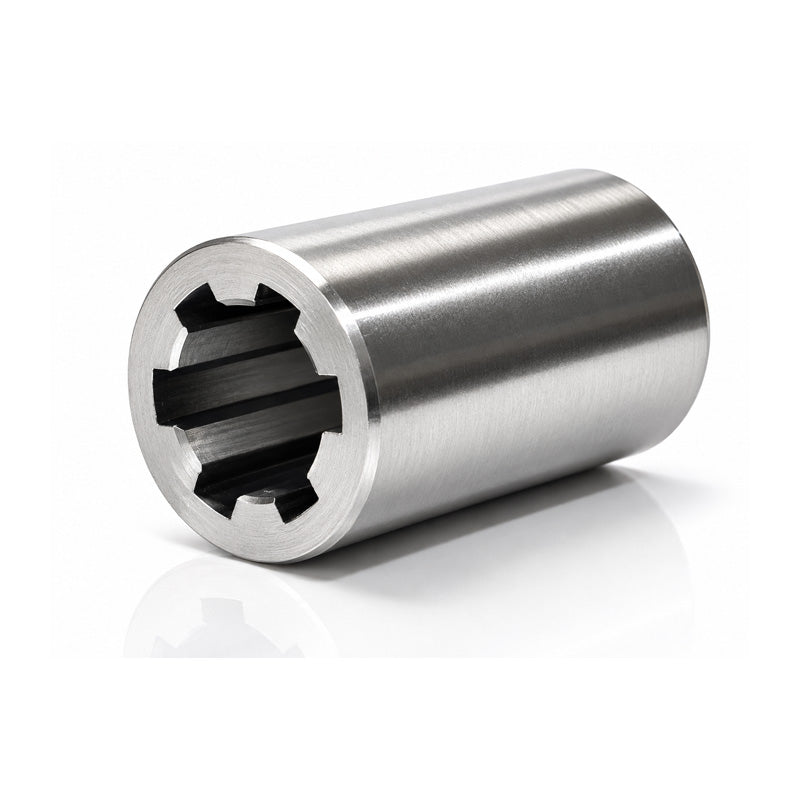

Major Brand SPH22X18X5 Metric Steel Splined Bush with 6 Splines 18x31.75x40mm - Allow 2-3 Days

Metric Steel Splined Bushes: A splined bush, also known as a splined bushing, is a mechanical component designed to facilitate the transfer of torque between rotating parts while allowing some degree of axial movement. Splined bushes are to be used with splined shafts which are essential components in producing various machinery and industrial applications, known for their ridged structure that ensures efficient torque transfer and high rotation speed handling. Splined shafts are available separately. These bushes are manufactured from high-quality carbon steel. Commonly used in manufacturing, automotive, aviation, and earth-moving machinery, regular cleaning, and lubrication are crucial for maintaining their functionality and extending their lifespan.
Benefits: High-quality, durable material, enhanced load capacity

Brand / Quality:

Simply Splined Bush

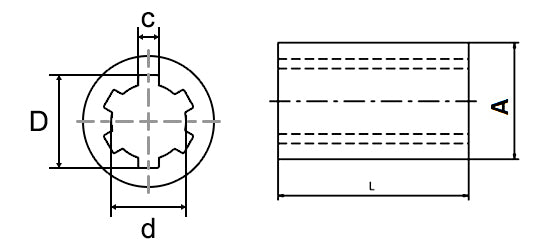

Inside Diameter:

18mm

Outside Diameter:

31.75mm

Length:

40mm

Style:

6 Splines
