• Major Brand SPS16X13X3.5/1 Metric Steel Splined Shaft with 6 Splines 13x16x1000mm - Allow 2-3 Days
1 1

SKU: SPS16X13X3.5/1

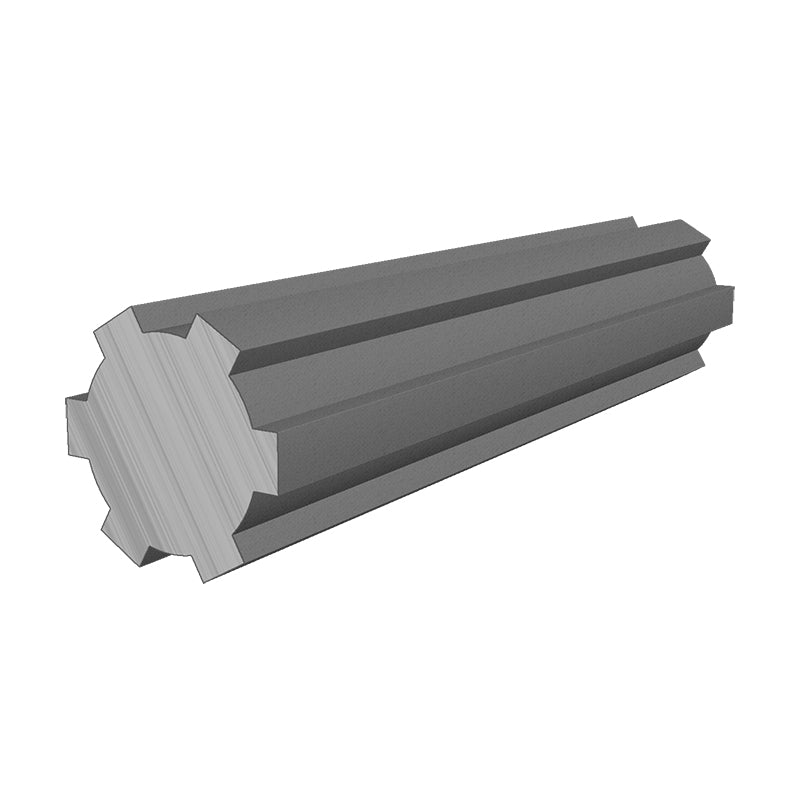

Major Brand SPS16X13X3.5/1 Metric Steel Splined Shaft with 6 Splines 13x16x1000mm - Allow 2-3 Days

Major Brand SPS16X13X3.5/1 Metric Steel Splined Shaft with 6 Splines 13x16x1000mm - Allow 2-3 Days
$100.73 ex VAT
$100.73 ex VAT
Sale Sold out

In stock

Price Break
3+ $67.47
5+ $63.68
9+ $62.92
19+ $62.16
49+ $61.41
74+ $60.65
99+ $56.86
199+ $56.10
249+ $55.34
499+ $54.58
999+ $53.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Splined Shaft
Inside Diameter:
13mm
Outside Diameter:
16mm
Length:
1000mm
Style:
6 Splines
Technical
Number of Splines 6
D 16mm
d 13mm
c 3.5mm
Length 1000mm
Sm. 45 Deg 0.2mm
r 0.2mm
D Tolerance -0.07mm to -0.2mm
d Tolerance 0mm to -0.08mm
c Tolerance -0.03mm to -0.08mm
Linear Straightness Tolerance 0.8mm / 1000mm
Torsional Straightness Tolerance 0.5mm / 1000mm
Material Steel C40/C45 (EN8)
Weight Kg/m 1.287 Kg/m
