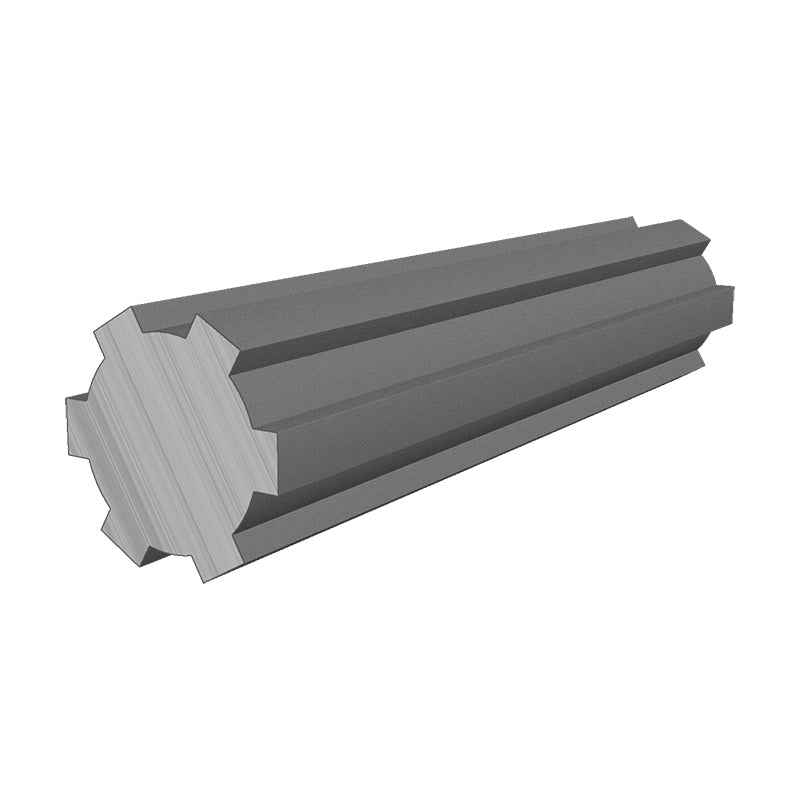

• Major Brand SPS22X18X5/1 Metric Steel Splined Shaft with 6 Splines 18x22x1000mm - Allow 2-3 Days
1 1

SKU: SPS22X18X5/1

Major Brand SPS22X18X5/1 Metric Steel Splined Shaft with 6 Splines 18x22x1000mm - Allow 2-3 Days

Major Brand SPS22X18X5/1 Metric Steel Splined Shaft with 6 Splines 18x22x1000mm - Allow 2-3 Days
$114.03 ex VAT
$114.03 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.38
5+ $72.09
9+ $71.23
19+ $70.38
49+ $69.52
74+ $68.66
99+ $64.37
199+ $63.51
249+ $62.65
499+ $61.79
999+ $60.08

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Splined Shaft
Inside Diameter:
18mm
Outside Diameter:
22mm
Length:
1000mm
Style:
6 Splines

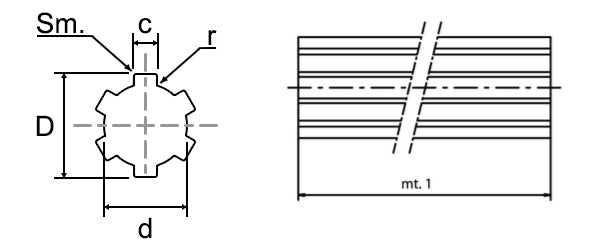

Technical
Number of Splines 6
D 22mm
d 18mm
c 5mm
Length 1000mm
Sm. 45 Deg 0.2mm
r 0.2mm
D Tolerance -0.07mm to -0.25mm
d Tolerance 0mm to -0.08mm
c Tolerance -0.03mm to -0.08mm
Linear Straightness Tolerance 0.8mm / 1000mm
Torsional Straightness Tolerance 0.5mm / 1000mm
Material Steel C40/C45 (EN8)
Weight Kg/m 2.453 Kg/m
