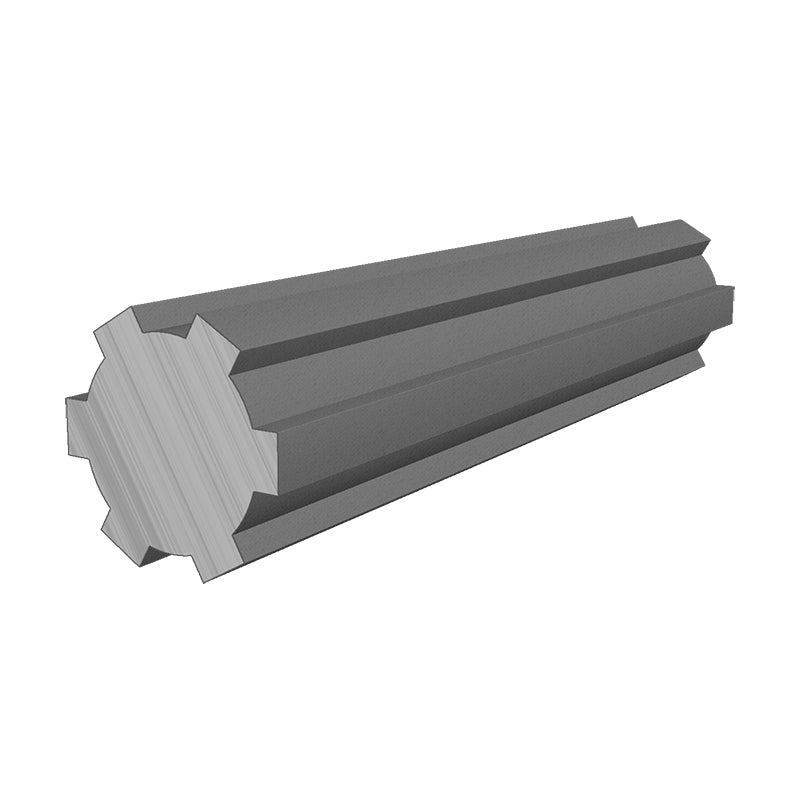

• Major Brand SPS28X23X6/1 Metric Steel Splined Shaft with 6 Splines 23x28x1000mm - Allow 2-3 Days
1 1

SKU: SPS28X23X6/1

Major Brand SPS28X23X6/1 Metric Steel Splined Shaft with 6 Splines 23x28x1000mm - Allow 2-3 Days

Major Brand SPS28X23X6/1 Metric Steel Splined Shaft with 6 Splines 23x28x1000mm - Allow 2-3 Days
$143.23 ex VAT
$143.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $95.94
5+ $90.55
9+ $89.47
19+ $88.39
49+ $87.31
74+ $86.24
99+ $80.85
199+ $79.77
249+ $78.69
499+ $77.61
999+ $75.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Splined Shaft
Inside Diameter:
23mm
Outside Diameter:
28mm
Length:
1000mm
Style:
6 Splines
Technical
Number of Splines 6
D 28mm
d 23mm
c 6mm
Length 1000mm
Sm. 45 Deg 0.3mm
r 0.2mm
D Tolerance -0.07mm to -0.27mm
d Tolerance 0mm to -0.08mm
c Tolerance -0.03mm to -0.08mm
Linear Straightness Tolerance 0.8mm / 1000mm
Torsional Straightness Tolerance 0.5mm / 1000mm
Material Steel C40/C45 (EN8)
Weight Kg/m 3.964 Kg/m
