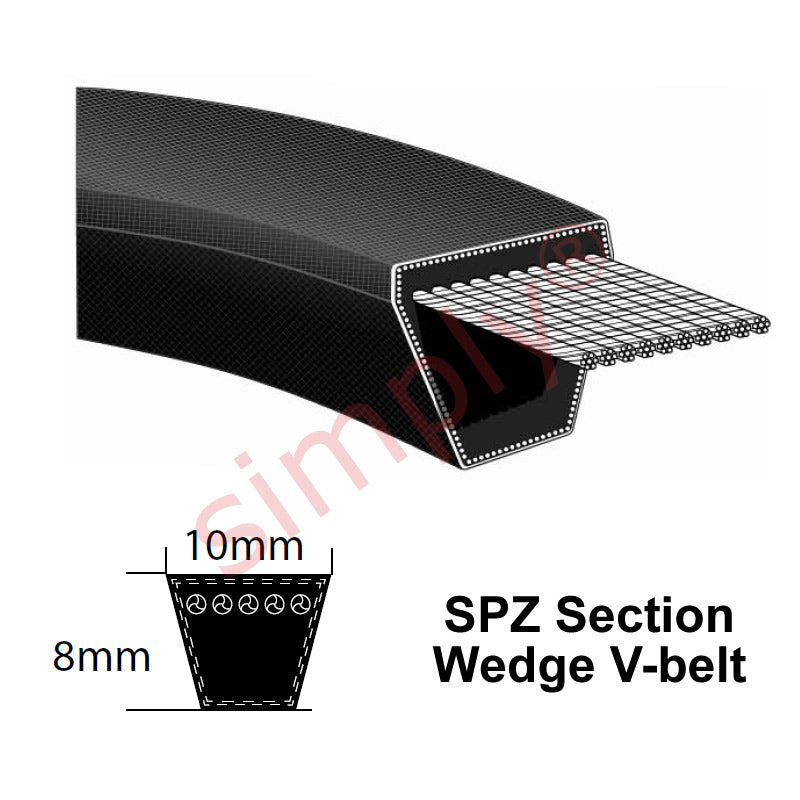

SPZ3150 Premier Quality SPZ-Section V-Belt

SPZ Section Wedge Type V Belts: Premier longer life wedge 10x8mm (3/8x5/16 inch) belts, these premium brand wedge belts are hugely popular due to their high quality and space saving properties. Ideal for use in many industrial applications and are suitable for a wide range of duties ranging from light to very heavy duties such as driving crushing devices.
Benefits: Premium quality, Universal wedge profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Brand / Quality:

Premier - High Quality

Belt Number:

SPZ3150

Inside Length Approx:

3112mm

Outside Length Approx:

3163mm

Belt Width Approx:

10mm

Belt Depth Approx:

8mm

Belt Datum Length Approx:

3150mm
