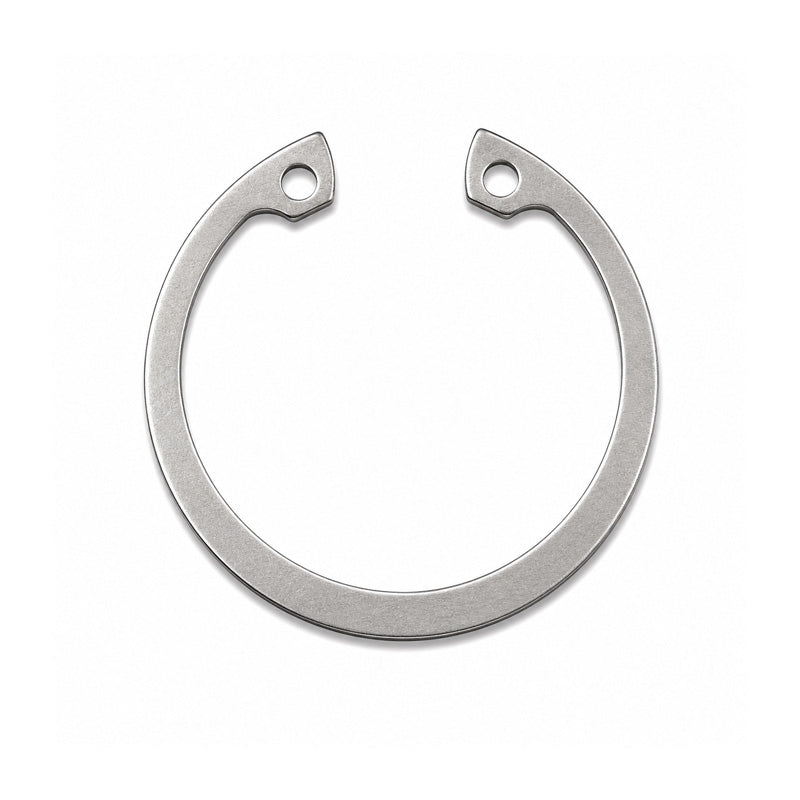

• Stainless Internal Circlip for 125mm Bore Diameter Un-Sprung Dia 132mm
1 1

SKU: SS.D1300-125

Stainless Internal Circlip for 125mm Bore Diameter Un-Sprung Dia 132mm

Stainless Internal Circlip for 125mm Bore Diameter Un-Sprung Dia 132mm
$10.27 ex VAT
$10.27 ex VAT
Sale Sold out

Equivalent to: SSD1300-125

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply Circlips - Economy Quality
Bore:
125mm
Outside Diameter:
132mm
Material:
Stainless Steel
Thickness:
4mm
Groove Diameter:
129mm
Technical
--- Clip Dimensions
Bore Size 125mm
Thickness s 4mm
Thickness tolerance -0.1mm
Unstressed diameter d3 132mm
Unstressed diameter tolerance +1.50-0.63mm
Lug a 11mm
Beam b 10mm
d5 4mm
Weight 79.00 g
--- Groove Requirements
Groove diameter 129mm
Groove tolerance 0.63mm
Minimum groove width 4.15mm
Groove depth 2mm
