SKU: SS.D1500-0019

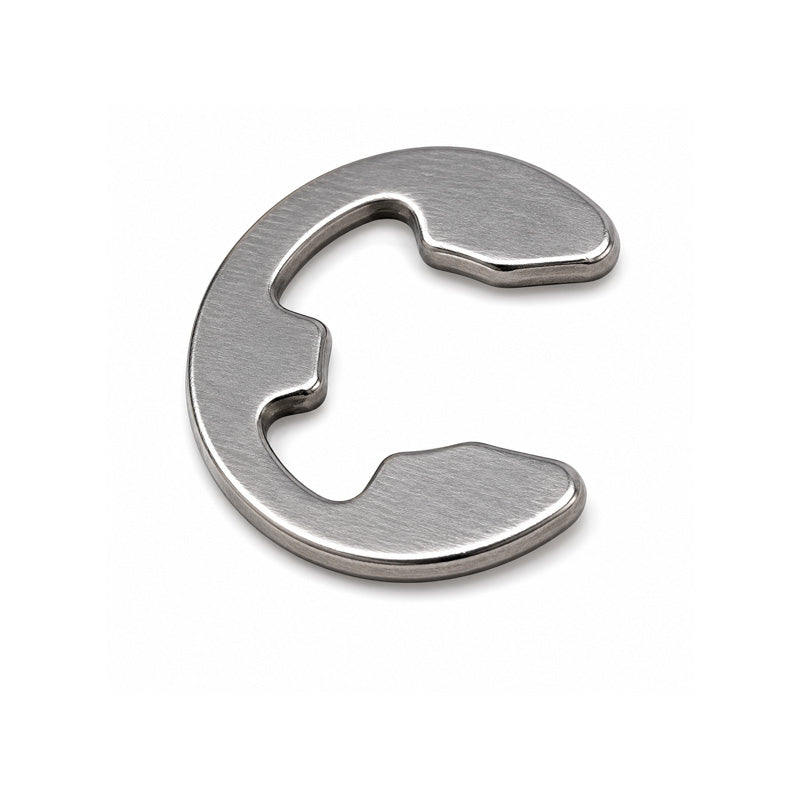

Stainless Steel E-Clip for 1.9mm Groove Diameter
Stainless Steel E-Clip for 1.9mm Groove Diameter
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
Equivalent to: SS.D1500-0019
In stock
Price Break
10+
$0.43
20+
$0.29
50+
$0.18
100+
$0.13
500+
$0.07
1000+
$0.05
Quantity
Couldn't load pickup availability
Description
Description
|
E-Clips: The most common form of radially fitted circlips for shafts with grooves. Provide a large shoulder on a relatively small shaft diameter. Only the groove size is critical with this type of circlip, the shaft diameter can vary slightly. Material: Stainless Steel Benefits: Cost effective replacement, durable, removable. |
- Brand / Quality:
- Simply E-Clips - Economy Quality
- Material:
- Stainless Steel
- Shaft Size:
- 2.5mm
- Thickness:
- 0.5mm
- Groove Diameter:
- 1.9mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (d1) | 2.5mm |
| Shaft Range | 2.5mm to 3mm |
| Thickness (s) | 0.5mm |
| Thickness Tolerance | ±0.02mm |
| Max Outisde Diameter (d4) | 4.4mm |
| Shoulder Length (n) | 1mm |
| a | 1.61mm |
| a Tolerance | ±0.04mm |
| Weight | 0.04kg |
| --- | Speeds and Load Ratings |
| Max Fling Off Speed | 40000rpm |
| --- | Groove Requirements |
| Groove Diameter (d2) | 1.9mm |
| Groove Diameter Tolerance | +0mm / -0.06mm |
| Groove Width (m) | 0.54mm |
| Groove Depth (g) | 0.7mm |
