SKU: SS.D1500-0040

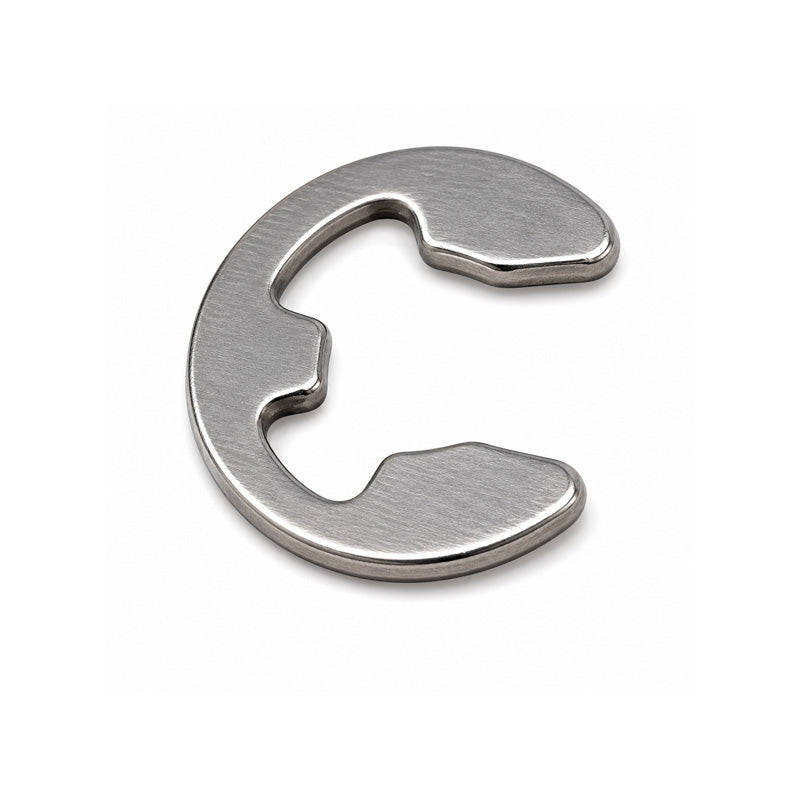

Stainless Steel E-Clip for 4mm Groove Diameter
Stainless Steel E-Clip for 4mm Groove Diameter
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
Equivalent to: SS.D1500-0040
In stock
Price Break
10+
$0.43
20+
$0.29
50+
$0.18
100+
$0.13
500+
$0.07
1000+
$0.05
Quantity
Couldn't load pickup availability
Description
Description
|
E-Clips: The most common form of radially fitted circlips for shafts with grooves. Provide a large shoulder on a relatively small shaft diameter. Only the groove size is critical with this type of circlip, the shaft diameter can vary slightly. Material: Stainless Steel Benefits: Cost effective replacement, durable, removable. |
- Brand / Quality:
- Simply E-Clips - Economy Quality
- Material:
- Stainless Steel
- Shaft Size:
- 5mm
- Thickness:
- 0.7mm
- Groove Diameter:
- 4mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (d1) | 5mm |
| Shaft Range | 5mm to 7mm |
| Thickness (s) | 0.7mm |
| Thickness Tolerance | ±0.02mm |
| Max Outisde Diameter (d4) | 8.85mm |
| Shoulder Length (n) | 1.2mm |
| a | 3.34mm |
| a Tolerance | ±0.048mm |
| Weight | 0.158kg |
| --- | Speeds and Load Ratings |
| Max Fling Off Speed | 32000rpm |
| --- | Groove Requirements |
| Groove Diameter (d2) | 4mm |
| Groove Diameter Tolerance | +0mm / -0.075mm |
| Groove Width (m) | 0.74mm |
| Groove Depth (g) | 1mm |
