SKU: SS.D1500-0100

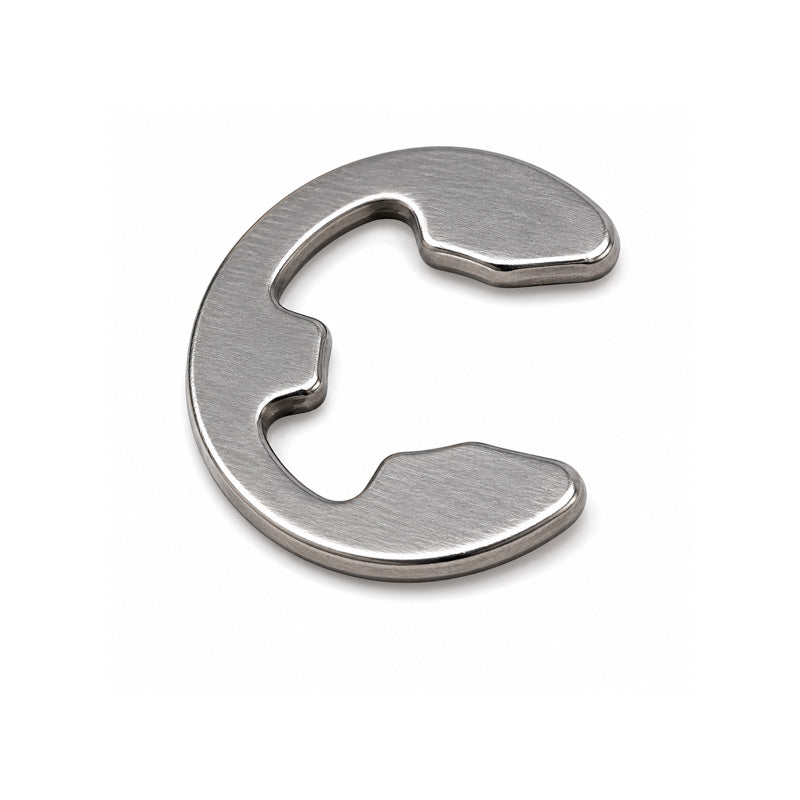

Stainless Steel E-Clip for 10mm Groove Diameter
Stainless Steel E-Clip for 10mm Groove Diameter
Regular price
$1.13
ex VAT
Regular price
Sale price
$1.13
ex VAT
Equivalent to: SS.D1500-0100
In stock
Price Break
10+
$0.47
20+
$0.36
50+
$0.26
100+
$0.21
500+
$0.17
1000+
$0.13
Quantity
Couldn't load pickup availability
Description
Description
|
E-Clips: The most common form of radially fitted circlips for shafts with grooves. Provide a large shoulder on a relatively small shaft diameter. Only the groove size is critical with this type of circlip, the shaft diameter can vary slightly. Material: Stainless Steel Benefits: Cost effective replacement, durable, removable. |
- Brand / Quality:
- Simply E-Clips - Economy Quality
- Material:
- Stainless Steel
- Shaft Size:
- 12mm
- Thickness:
- 1.2mm
- Groove Diameter:
- 10mm
Technical
Technical
| --- | Clip Dimensions |
|---|---|
| Shaft Size (d1) | 12mm |
| Shaft Range | 11mm to 15mm |
| Thickness (s) | 1.2mm |
| Thickness Tolerance | ±0.03mm |
| Max Outisde Diameter (d4) | 19.7mm |
| Shoulder Length (n) | 2mm |
| a | 8.32mm |
| a Tolerance | ±0.058mm |
| Weight | 1.12kg |
| --- | Speeds and Load Ratings |
| Max Fling Off Speed | 15000rpm |
| --- | Groove Requirements |
| Groove Diameter (d2) | 10mm |
| Groove Diameter Tolerance | +0mm / -0.09mm |
| Groove Width (m) | 1.25mm |
| Groove Depth (g) | 1.8mm |
