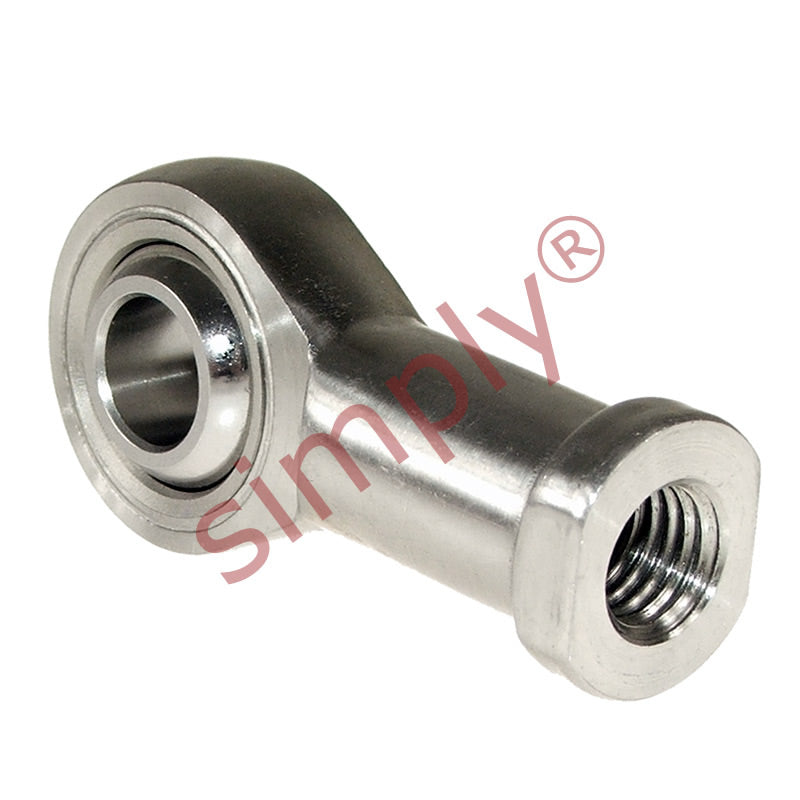

• Budget SSPHS12 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
1 1

SKU: SS.PHS12.EU

Budget SSPHS12 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread

Budget SSPHS12 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 12mm Bore M12x1.75 Thread
$39.08 ex VAT
$39.08 ex VAT
Sale Sold out

In stock

Price Break
10+ $26.17
19+ $24.70
29+ $24.41
39+ $24.12
49+ $23.82
74+ $23.53
99+ $22.06
199+ $21.76
249+ $21.47
499+ $21.18
999+ $20.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M12x1.75
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
12mm
Material:
PTFE Lined
Technical
d 12mm
B 16mm
r1 0.6mm
C1 12mm
d1 max 15.4mm
d2 30mm
d3 M12x1.75
h1 50mm
L3 24mm
L4 65mm
L5 6.5mm
d4 17.5mm
d5 22mm
S 19mm
Ball diameter 7/8 inch
Dynamic load Cr 13.3mm
Static load Cor 17.3mm
Max angle α 13
Weight 0.107 kg
