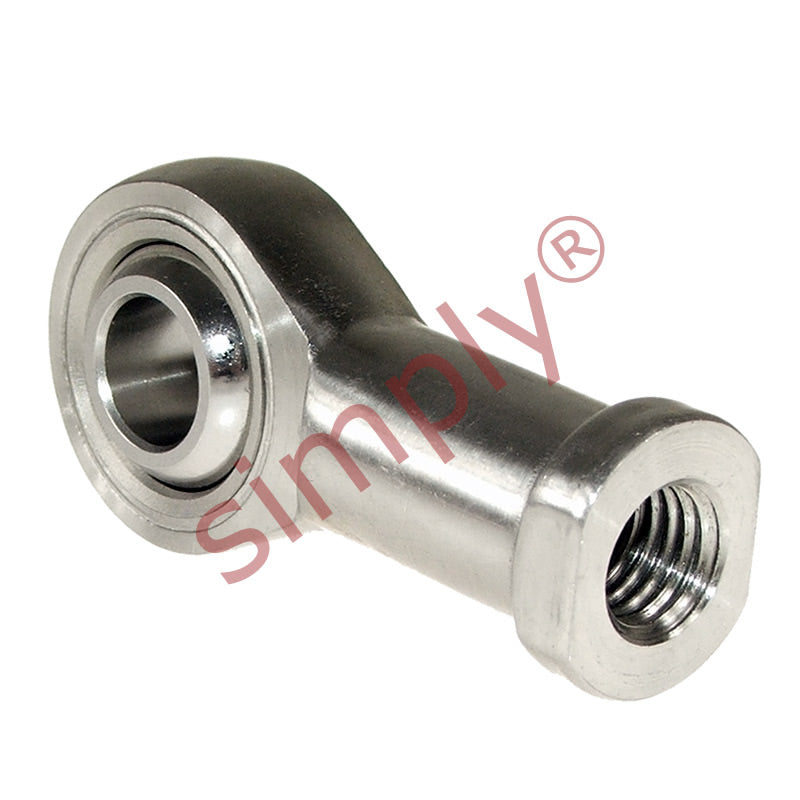

• Budget SSPHS14 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 14mm Bore M14x2 Thread
1 1

SKU: SS.PHS14.EU

Budget SSPHS14 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 14mm Bore M14x2 Thread

Budget SSPHS14 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 14mm Bore M14x2 Thread
$49.52 ex VAT
$49.52 ex VAT
Sale Sold out

In stock

Price Break
10+ $33.17
19+ $31.31
29+ $30.93
39+ $30.56
49+ $30.19
74+ $29.82
99+ $27.95
199+ $27.58
249+ $27.21
499+ $26.84
999+ $26.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M14x2
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
14mm
Material:
PTFE Lined
Technical
d 14mm
B 19mm
r1 0.6mm
C1 13.5mm
d1 max 16.8mm
d2 34mm
d3 M14x2
h1 57mm
L3 27mm
L4 74mm
L5 8mm
d4 20mm
d5 25mm
S 22mm
Ball diameter 1 inch
Dynamic load Cr 17.1mm
Static load Cor 21.3mm
Max angle α 16
Weight 0.16 kg
