SKU: SS.PHS14L.EU

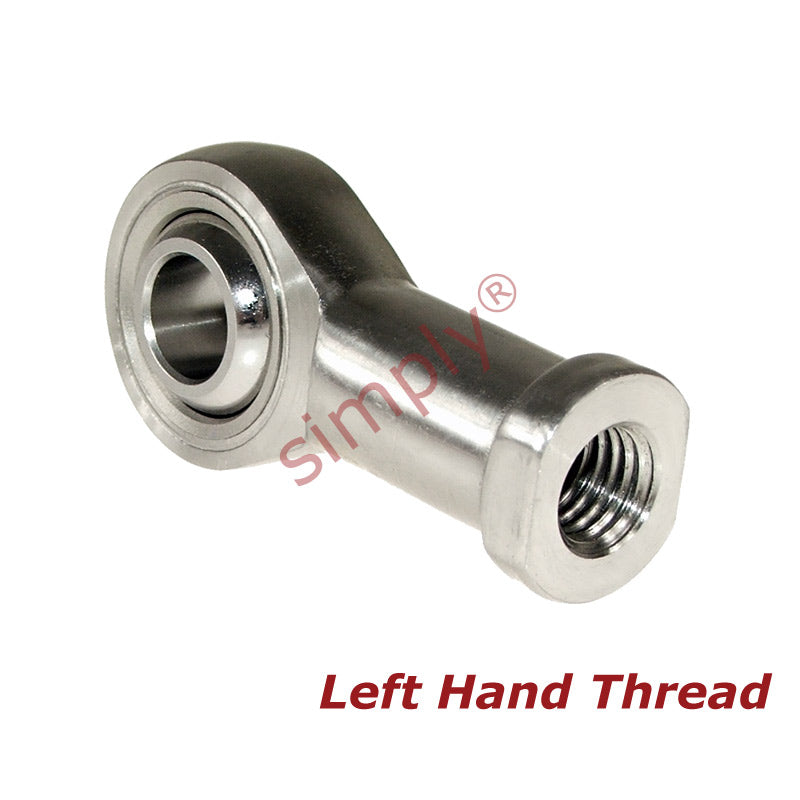

Budget SSPHS14L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 14mm Bore M14x2 Thread

Name: Budget SSPHS14L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 14mm Bore M14x2 Thread
Brand: Gen
SKU: SS.PHS14L.EU
Price: 49.52 USD
Availability: InStock

$49.52 ex VAT

Sale Sold out

In stock

Price Break

10+ $33.17

19+ $31.31

29+ $30.93

39+ $30.56

49+ $30.19

74+ $29.82

99+ $27.95

199+ $27.58

249+ $27.21

499+ $26.84

999+ $26.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: LEFT hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M14x2
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 14mm
Material:: PTFE Lined

Technical

d	14mm
B	19mm
r1	0.6mm
C1	13.5mm
d1 max	16.8mm
d2	34mm
d3	M14x2
h1	57mm
L3	27mm
L4	74mm
L5	8mm
d4	20mm
d5	25mm
S	22mm
Ball diameter	1 inch
Dynamic load Cr	17.1mm
Static load Cor	21.3mm
Max angle α	16
Weight	0.16 kg
