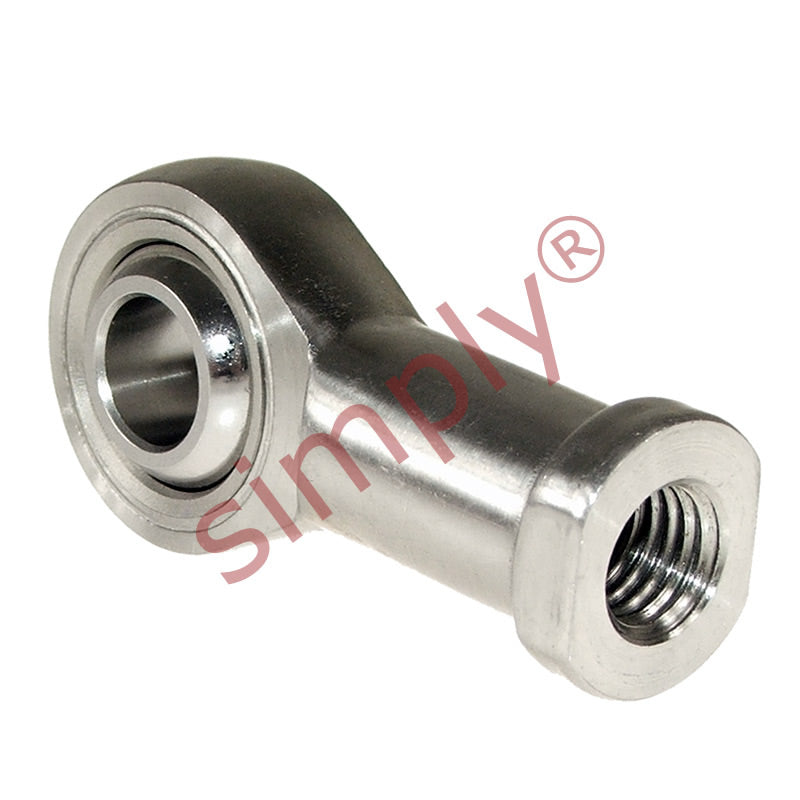

• Budget SSPHS16 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x2 Thread
1 1

SKU: SS.PHS16.EU

Budget SSPHS16 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x2 Thread

Budget SSPHS16 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x2 Thread
$57.00 ex VAT
$57.00 ex VAT
Sale Sold out

In stock

Price Break
10+ $38.18
19+ $36.04
29+ $35.61
39+ $35.18
49+ $34.75
74+ $34.32
99+ $32.18
199+ $31.75
249+ $31.32
499+ $30.89
999+ $30.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M16x2
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
16mm
Material:
PTFE Lined
Technical
d 16mm
B 21mm
r1 0.6mm
C1 15mm
d1 max 19.3mm
d2 38mm
d3 M16x2
h1 64mm
L3 33mm
L4 83mm
L5 8mm
d4 22mm
d5 27mm
S 22mm
Ball diameter 1-1/8 inch
Dynamic load Cr 21.4mm
Static load Cor 25.9mm
Max angle α 15
Weight 0.21 kg
