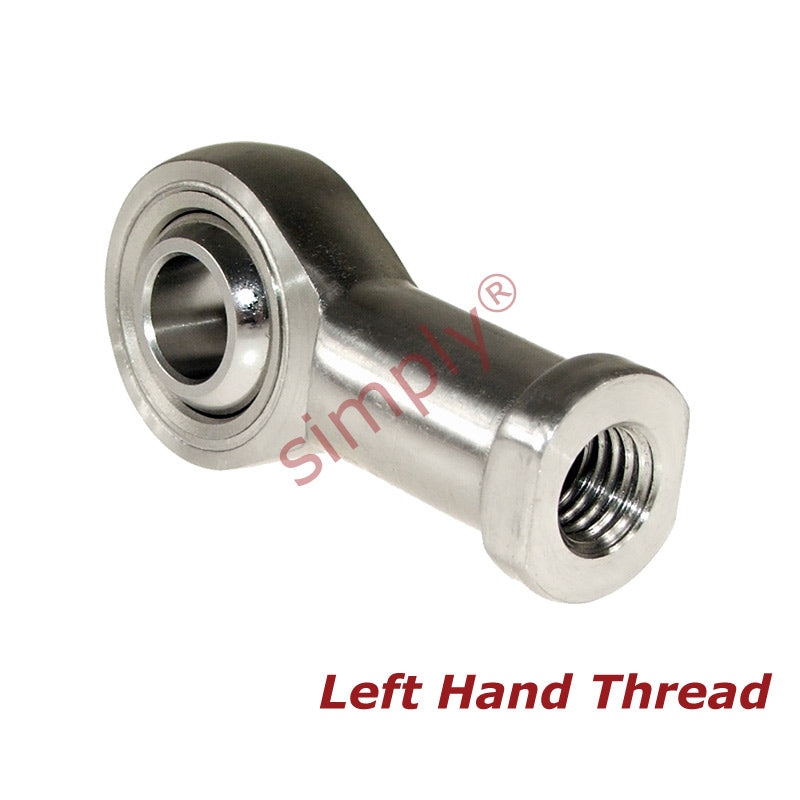

• Budget SSPHS16/F1L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x1.5 Thread
1 1

SKU: SS.PHS16/F1L.EU

Budget SSPHS16/F1L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x1.5 Thread

Budget SSPHS16/F1L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x1.5 Thread
$50.17 ex VAT
$50.17 ex VAT
Sale Sold out

In stock

Price Break
10+ $33.61
19+ $31.72
29+ $31.34
39+ $30.97
49+ $30.59
74+ $30.21
99+ $28.32
199+ $27.95
249+ $27.57
499+ $27.19
999+ $26.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M16x1.5
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
16mm
Material:
PTFE Lined
Technical
d 16mm
B 21mm
r1 0.6mm
C1 15mm
d1 max 19.3mm
d2 38mm
d3 M16x1.5
h1 64mm
L3 33mm
L4 83mm
L5 8mm
d4 22mm
d5 27mm
S 22mm
Ball diameter 1-1/8 inch
Dynamic load Cr 21.4mm
Static load Cor 25.9mm
Max angle α 15
Weight 0.21 kg
