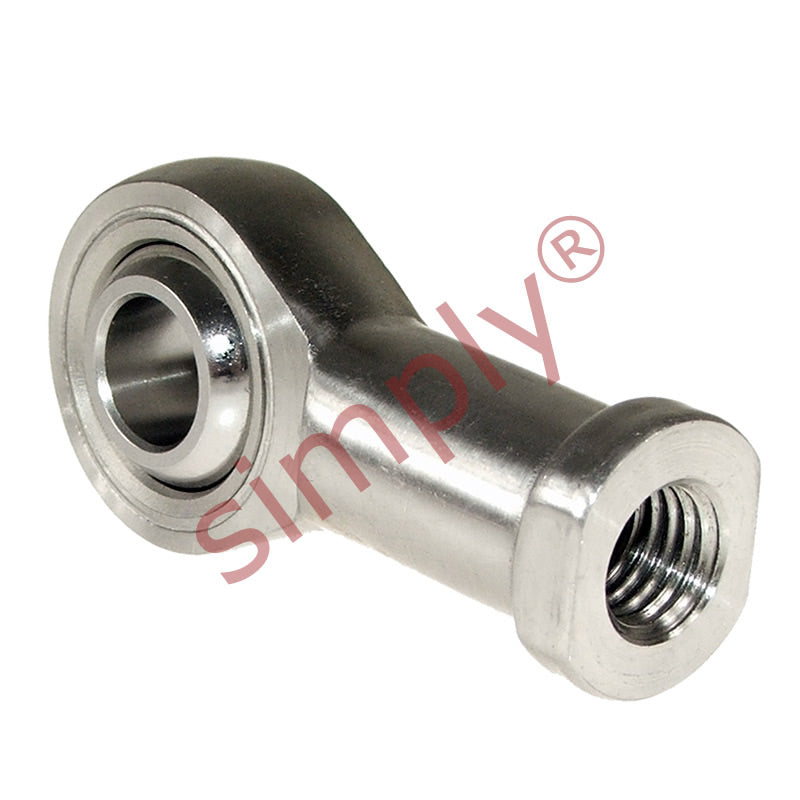

• Budget SSPHS20 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 20mm Bore M20x1.5 Thread
1 1

SKU: SS.PHS20.EU

Budget SSPHS20 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 20mm Bore M20x1.5 Thread

Budget SSPHS20 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 20mm Bore M20x1.5 Thread
$86.86 ex VAT
$86.86 ex VAT
Sale Sold out

In stock

Price Break
10+ $58.18
19+ $54.91
29+ $54.26
39+ $53.61
49+ $52.95
74+ $52.30
99+ $49.03
199+ $48.38
249+ $47.72
499+ $47.07
999+ $45.76

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M20x1.5
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
20mm
Material:
PTFE Lined
Technical
d 20mm
B 25mm
r1 0.6mm
C1 18mm
d1 max 24.3mm
d2 46mm
d3 M20x1.5
h1 77mm
L3 40mm
L4 100mm
L5 10mm
d4 27.5mm
d5 34mm
S 30mm
Ball diameter 1-3/8 inch
Dynamic load Cr 31.4mm
Static load Cor 36.2mm
Max angle α 14
Weight 0.38 kg
