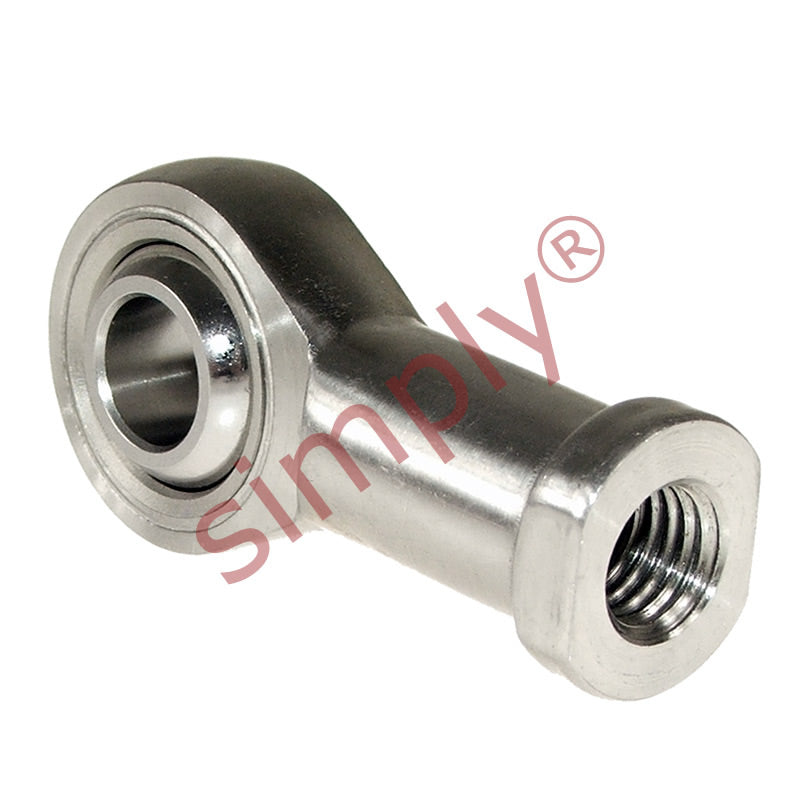

Budget SSPHS22 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 22mm Bore M22x1.5 Thread

Name: Budget SSPHS22 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 22mm Bore M22x1.5 Thread
Brand: Gen
SKU: SS.PHS22.EU
Price: 105.09 USD
Availability: InStock

$105.09 ex VAT

Sale Sold out

In stock

Price Break

10+ $70.39

19+ $66.44

29+ $65.65

39+ $64.86

49+ $64.07

74+ $63.27

99+ $59.32

199+ $58.53

249+ $57.74

499+ $56.95

999+ $55.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M22x1.5
Thread M / F:: Female
Thread Direction:: Right Hand
Inside Diameter:: 22mm
Material:: PTFE Lined

Technical

d	22mm
B	28mm
r1	0.6mm
C1	20mm
d1 max	25.8mm
d2	50mm
d3	M22x1.5
h1	84mm
L3	43mm
L4	109mm
L5	12mm
d4	30mm
d5	37mm
S	32mm
Ball diameter	1-1/2 inch
Dynamic load Cr	38.1mm
Static load Cor	42.6mm
Max angle α	15
Weight	0.49 kg
