• Budget SSPHS25L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 25mm Bore M24x2 Thread
1 1

SKU: SS.PHS25L.EU

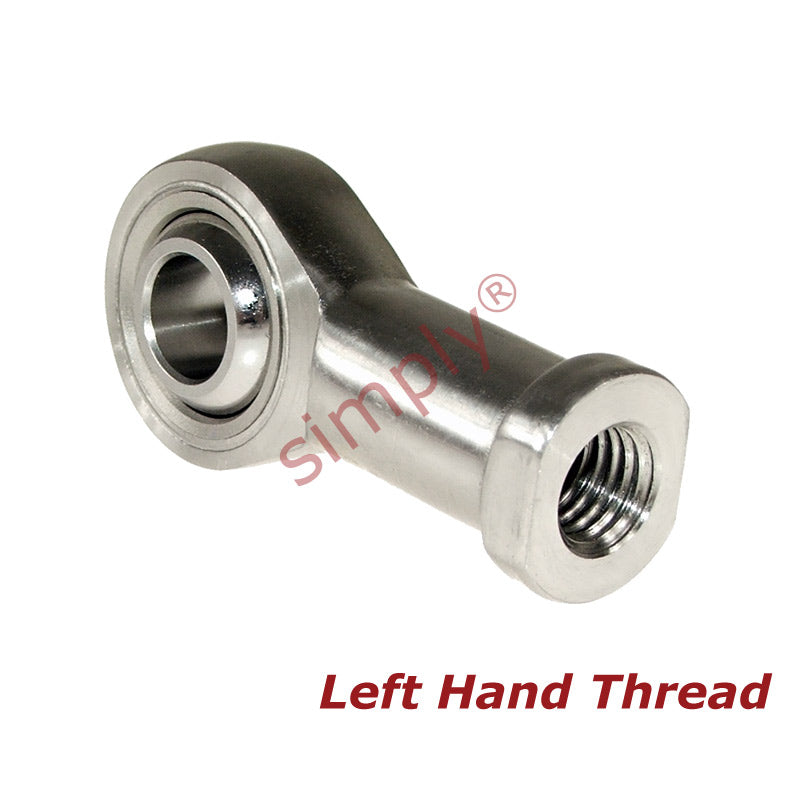

Budget SSPHS25L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 25mm Bore M24x2 Thread

Budget SSPHS25L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 25mm Bore M24x2 Thread
$124.61 ex VAT
$124.61 ex VAT
Sale Sold out

In stock

Price Break
10+ $83.46
19+ $78.77
29+ $77.83
39+ $76.90
49+ $75.96
74+ $75.02
99+ $70.33
199+ $69.39
249+ $68.46
499+ $67.52
999+ $65.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M24x2
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
25mm
Material:
PTFE Lined
Technical
d 25mm
B 31mm
r1 0.6mm
C1 22mm
d1 max 29.5mm
d2 60mm
d3 M24x2
h1 94mm
L3 48mm
L4 124mm
L5 12mm
d4 33.5mm
d5 42mm
S 36mm
Ball diameter 1-11/16 inch
Dynamic load Cr 47.1mm
Static load Cor 74.1mm
Max angle α 15
Weight 0.75 kg
