SKU: SS.PHS30L.EU

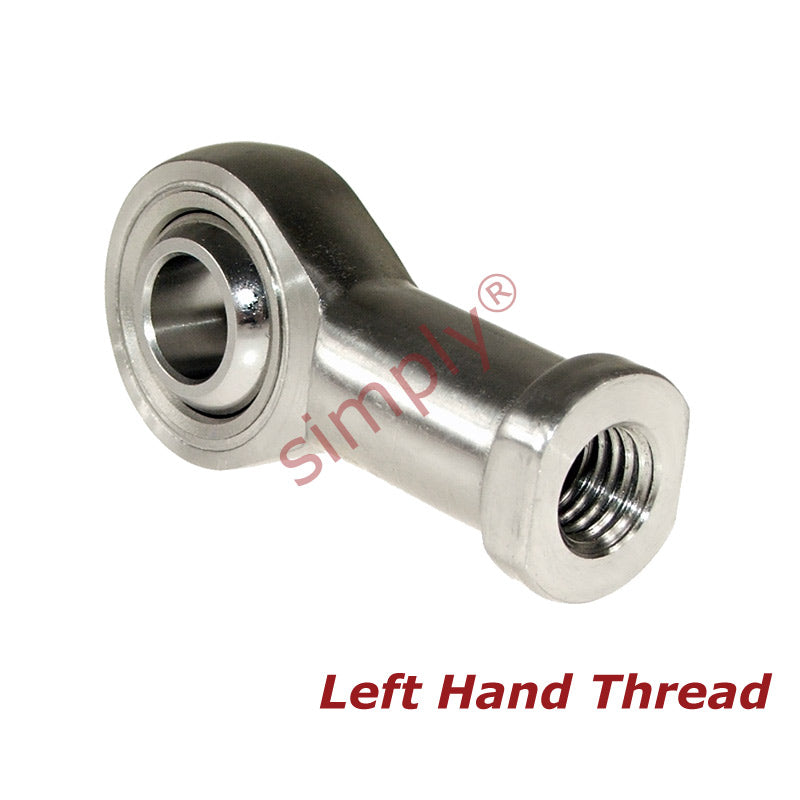

Budget SSPHS30L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 30mm Bore M30x2 Thread

Name: Budget SSPHS30L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 30mm Bore M30x2 Thread
Brand: Gen
SKU: SS.PHS30L.EU
Price: 145.89 USD
Availability: InStock

$145.89 ex VAT

Sale Sold out

In stock

Price Break

10+ $97.72

19+ $92.23

29+ $91.13

39+ $90.04

49+ $88.94

74+ $87.84

99+ $82.35

199+ $81.25

249+ $80.15

499+ $79.06

999+ $76.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: LEFT hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M30x2
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 30mm
Material:: PTFE Lined

Technical

d	30mm
B	37mm
r1	0.6mm
C1	25mm
d1 max	34.8mm
d2	70mm
d3	M30x2
h1	110mm
L3	56mm
L4	145mm
L5	15mm
d4	40mm
d5	50mm
S	41mm
Ball diameter	2 inch
Dynamic load Cr	63.5mm
Static load Cor	94mm
Max angle α	17
Weight	1.13 kg
