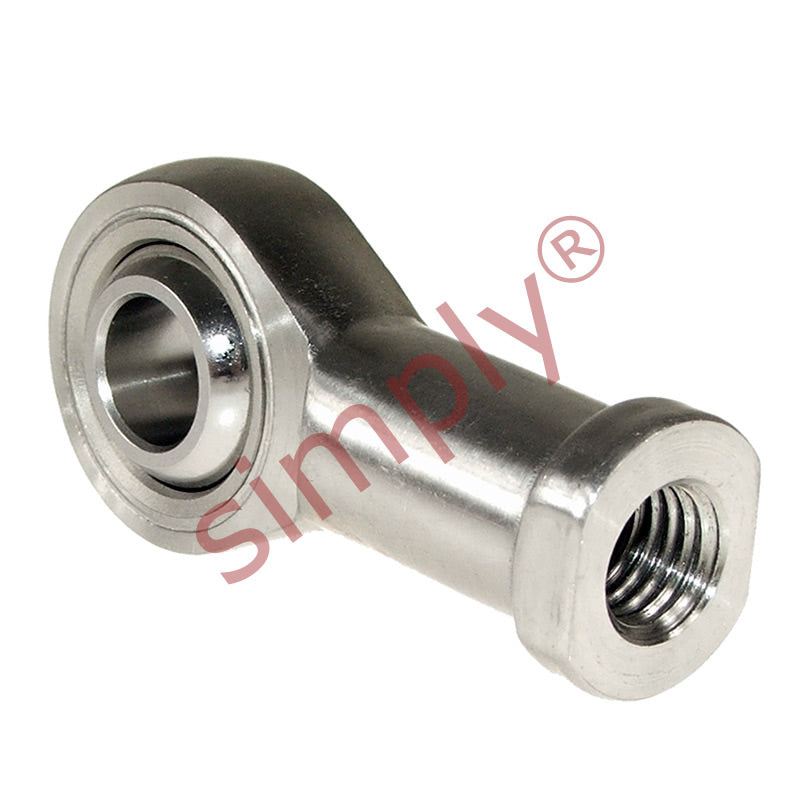

• Budget SSPHS5 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
1 1

SKU: SS.PHS5.EU

Budget SSPHS5 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 5mm Bore M5x0.8 Thread

Budget SSPHS5 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 5mm Bore M5x0.8 Thread
$21.71 ex VAT
$21.71 ex VAT
Sale Sold out

In stock

Price Break
10+ $14.55
19+ $13.73
29+ $13.57
39+ $13.40
49+ $13.24
74+ $13.07
99+ $12.26
199+ $12.09
249+ $11.93
499+ $11.77
999+ $11.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M5x0.8
Thread M / F:
Female
Thread Direction:
Right Hand
Inside Diameter:
5mm
Material:
PTFE Lined
Technical
d 5mm
B 8mm
r1 0.3mm
C1 6mm
d1 max 7.7mm
d2 16mm
d3 M5x0.8
h1 27mm
L3 13mm
L4 35mm
L5 4mm
d4 9mm
d5 11mm
S 9mm
Ball diameter 7/16 inch
Dynamic load Cr 3.3mm
Static load Cor 5.8mm
Max angle α 13
Weight 0.0165 kg
