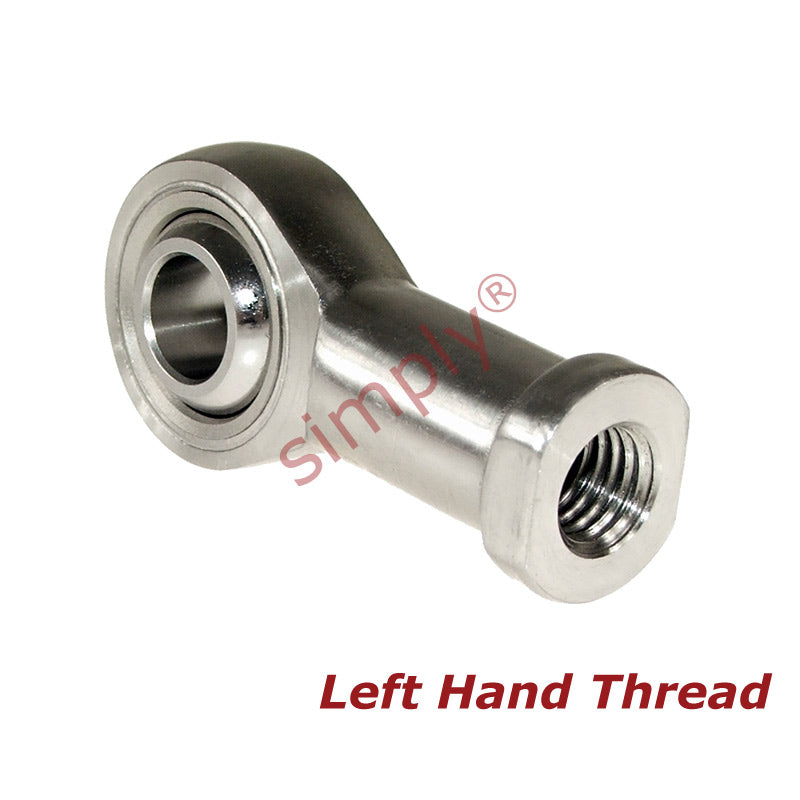

Budget SSPHS6L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 6mm Bore M6x1 Thread

Name: Budget SSPHS6L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 6mm Bore M6x1 Thread
Brand: Gen
SKU: SS.PHS6L.EU
Price: 22.26 USD
Availability: InStock

$22.26 ex VAT

Sale Sold out

In stock

Price Break

10+ $14.91

19+ $14.07

29+ $13.90

39+ $13.74

49+ $13.57

74+ $13.40

99+ $12.56

199+ $12.40

249+ $12.23

499+ $12.06

999+ $11.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Female Rod End with PTFE Liner: LEFT hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M6x1
Thread M / F:: Female
Thread Direction:: Left Hand
Inside Diameter:: 6mm
Material:: PTFE Lined

Technical

d	6mm
B	9mm
r1	0.3mm
C1	6.75mm
d1 max	8.9mm
d2	18mm
d3	M6x1
h1	30mm
L3	13mm
L4	39mm
L5	5mm
d4	10mm
d5	13mm
S	11mm
Ball diameter	1/2 inch
Dynamic load Cr	4.3mm
Static load Cor	7.1mm
Max angle α	13
Weight	0.025 kg
