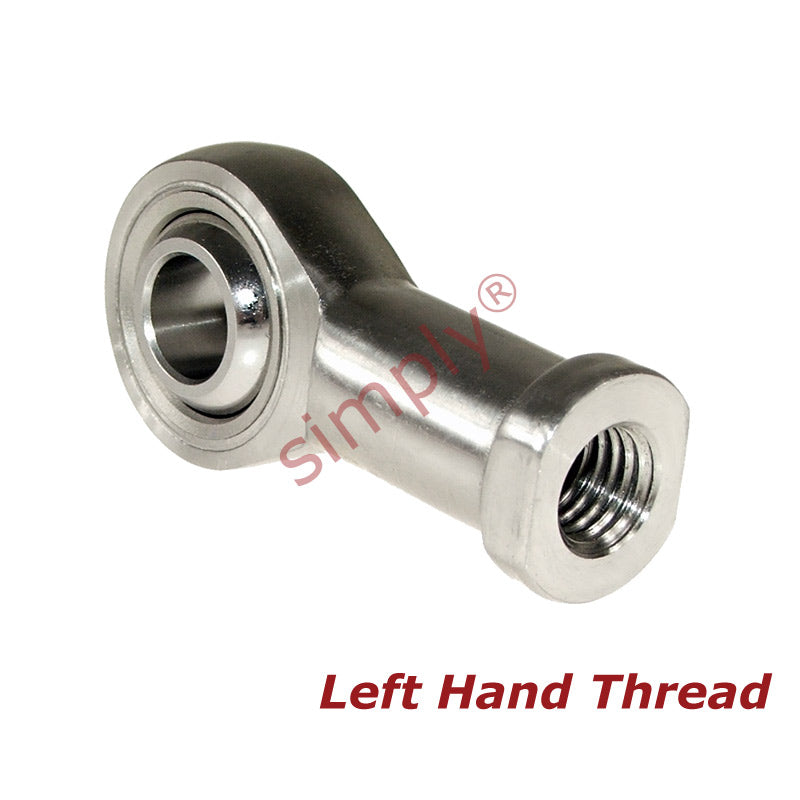

• Budget SSPHS8L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25 Thread
1 1

SKU: SS.PHS8L.EU

Budget SSPHS8L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25 Thread

Budget SSPHS8L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 8mm Bore M8x1.25 Thread
$25.62 ex VAT
$25.62 ex VAT
Sale Sold out

In stock

Price Break
10+ $17.16
19+ $16.19
29+ $16.00
39+ $15.81
49+ $15.62
74+ $15.42
99+ $14.46
199+ $14.27
249+ $14.07
499+ $13.88
999+ $13.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M8x1.25
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
8mm
Material:
PTFE Lined
Technical
d 8mm
B 12mm
r1 0.3mm
C1 9mm
d1 max 10.3mm
d2 22mm
d3 M8x1.25
h1 36mm
L3 17mm
L4 47mm
L5 5mm
d4 [12.5mm
d5 16mm
S 14mm
Ball diameter 5/8 inch
Dynamic load Cr 7.1mm
Static load Cor 10.4mm
Max angle α 14
Weight 0.043 kg
