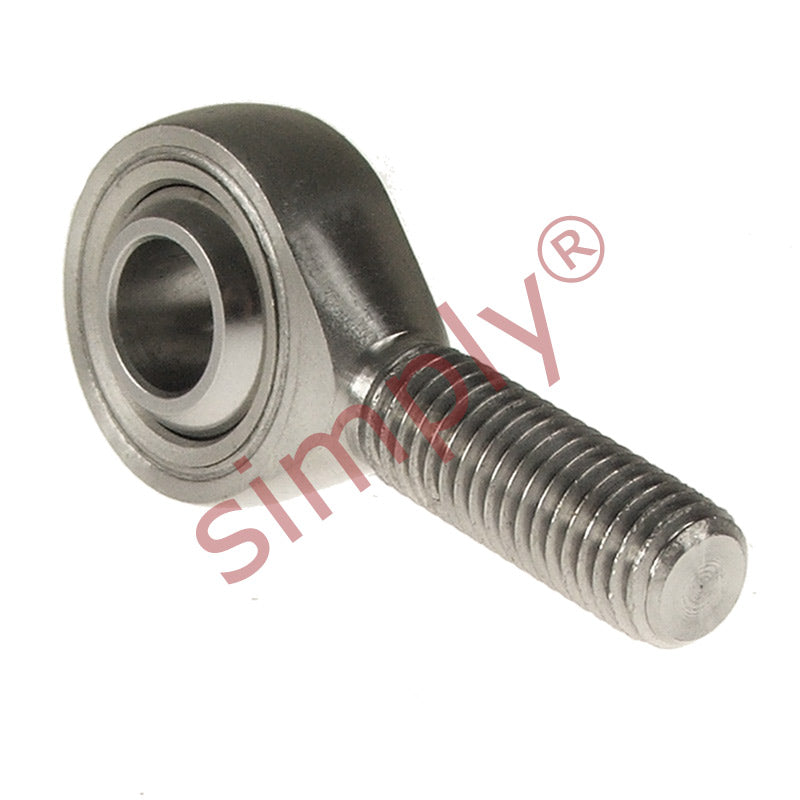

• Budget SSPOS10L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
1 1

SKU: SS.POS10L.EU

Budget SSPOS10L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread

Budget SSPOS10L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
$29.74 ex VAT
$29.74 ex VAT
Sale Sold out

In stock

Price Break
10+ $19.92
19+ $18.80
29+ $18.58
39+ $18.35
49+ $18.13
74+ $17.91
99+ $16.79
199+ $16.56
249+ $16.34
499+ $16.12
999+ $15.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M10x1.5
Thread M / F:
Male
Thread Direction:
Left Hand
Inside Diameter:
10mm
Material:
PTFE Lined
Technical
d 10mm
B 14mm
r1 0.6mm
C1 10.5mm
d1 max 12.9mm
d2 26mm
d3 M10x1.5
h 48mm
l1 29mm
l2 61mm
Ball diameter 3/4 inch
Dynamic load Cr 10 kN
Static load Cor 13.6 kN
Max angle α 13
Weight 0.054 kg
