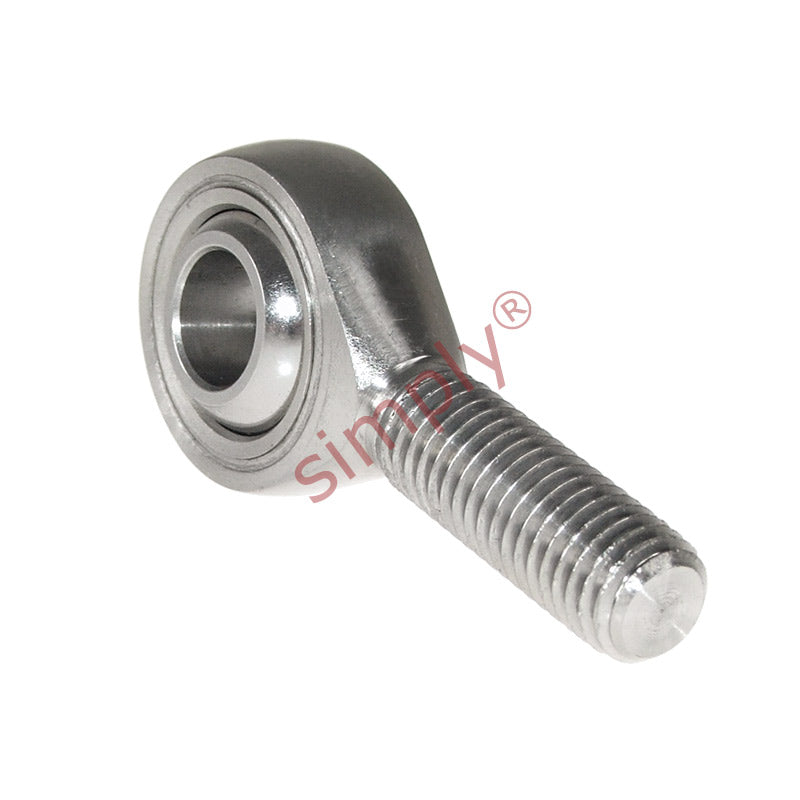

• Budget SSPOS12/F2 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.25 Thread
1 1

SKU: SS.POS12/F2.EU

Budget SSPOS12/F2 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.25 Thread

Budget SSPOS12/F2 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 12mm Bore M12x1.25 Thread
$34.72 ex VAT
$34.72 ex VAT
Sale Sold out

In stock

Price Break
10+ $23.26
19+ $21.95
29+ $21.69
39+ $21.43
49+ $21.17
74+ $20.91
99+ $19.60
199+ $19.34
249+ $19.08
499+ $18.82
999+ $18.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M12x1.25
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
12mm
Material:
PTFE Lined
Technical
d 12mm
B 16mm
r1 0.6mm
C1 12mm
d1 max 15.4mm
d2 30mm
d3 M12x1.25
h 54mm
l1 33mm
l2 69mm
Ball diameter 7/8 inch
Dynamic load Cr 13.3 kN
Static load Cor 17.3 kN
Max angle α 13
Weight 0.085 kg
