SKU: SS.POS25L.EU

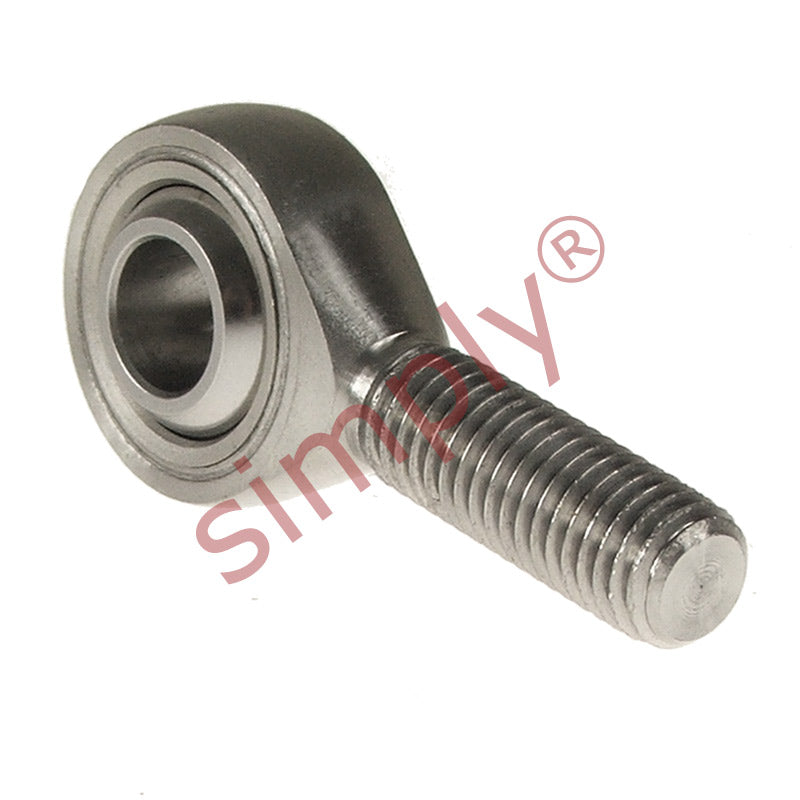

Budget SSPOS25L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 25mm Bore M24x2 Thread

Name: Budget SSPOS25L Left Hand Stainless Steel / PTFE Lined Plain Male Rod End 25mm Bore M24x2 Thread
Brand: Gen
SKU: SS.POS25L.EU
Price: 124.61 USD
Availability: InStock

$124.61 ex VAT

Sale Sold out

In stock

Price Break

10+ $83.46

19+ $78.77

29+ $77.83

39+ $76.90

49+ $75.96

74+ $75.02

99+ $70.33

199+ $69.39

249+ $68.46

499+ $67.52

999+ $65.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Stainless Steel Maintenance Free Male Rod End with PTFE Liner: LEFT hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free
Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request.

Brand / Quality:: EU Budget - Economy Quality
Thread Size:: M24x2
Thread M / F:: Male
Thread Direction:: Left Hand
Inside Diameter:: 25mm
Material:: PTFE Lined

Technical

d	25mm
B	31mm
r1	0.6mm
C1	22mm
d1 max	29.5mm
d2	60mm
d3	M24x2
h	94mm
l1	57mm
l2	124mm
Ball diameter	1-11/16 inch
Dynamic load Cr	47.1 kN
Static load Cor	74.1 kN
Max angle α	15
Weight	0.65 kg
